基于瘤胃球菌微生物群丰度构建疾病类型预测的肠道菌群标签

doi:10.19586/j.2095-2341.2023.0145

生物技术进展 ›› 2024, Vol. 14 ›› Issue (2): 323-330.DOI: 10.19586/j.2095-2341.2023.0145

• 研究论文 • 上一篇

基于瘤胃球菌微生物群丰度构建疾病类型预测的肠道菌群标签

徐婷¹(), 沈佳豪², 赵康¹, 黄鹭¹, 董恩惠¹, 曾可心³, 卞新为³, 季明辉¹(), 许勤¹()

^1.南京医科大学护理学院，南京 211166
^2.南京中医药大学中医学院·中西医结合学院，南京 210023
^3.南京医科大学第一临床医学院，南京 211166

收稿日期:2023-11-11 接受日期:2023-12-21 出版日期:2024-03-25 发布日期:2024-04-17
通讯作者: 季明辉,许勤
作者简介:徐婷E-mail: tingxu1229@stu.njmu.edu.cn
基金资助:
国家自然科学基金项目(82073407);江苏高校优势学科建设工程项目“护理学”(苏政办发〔2018〕87号);“十三五”江苏省重点学科项目“护理学”(苏教研〔2016〕9号)

Bacterial Signature for Prediction of Disease Type Based on Abundance of Ruminococcus

Ting XU¹(), Jiahao SHEN², Kang ZHAO¹, Lu HUANG¹, Enhui DONG¹, Kexin ZENG³, Xinwei BIAN³, Minghui JI¹(), Qin XU¹()

^1.School of Nursing，Nanjing Medical University，Nanjing 211166，China
^2.School of Integrated Chinese and Western Medicine，Nanjing University of Chinese Medicine，Nanjing 210023，China
^3.The First Clinical Medical College of Nanjing Medical University，Nanjing 211166，China

Received:2023-11-11 Accepted:2023-12-21 Online:2024-03-25 Published:2024-04-17
Contact: Minghui JI,Qin XU

摘要/Abstract

摘要：

为探讨肠道菌群在疾病类型预测中的价值，利用机器学习基于瘤胃球菌丰度构建了疾病的非侵入性评估模型。选取ExperimentHub R库存储库数据，下载来自不同研究的人类粪便瘤胃球菌丰度信息及实验方案、疾病状态、年龄、性别、抗生素使用情况、地区、吸烟情况等多种信息，利用随机森林、决策树、Adaboost等机器学习模型建立疾病筛查的评估模型，使用GridSearchCV（网格搜索）调整参数，并用混淆矩阵评估外部验证结果。经数据处理提取标准化命名了12种瘤胃球菌、7种疾病并将25个变量进行了哑变量变换。利用多种瘤胃球菌属微生物的丰度及性别、年龄等样本一般资料信息建立了3种评估模型。其中随机森林模型准确率最高（0.884），且当n_estimators为220时，模型得分为0.892，为最佳模型。外部验证结果也显示可见模型中分类算法预测错误的情况相对较少，模型性能良好。根据粪便样本的宏基因组学数据，基于瘤胃球菌丰度利用随机森林算法可以有效地对疾病类型进行预测。

关键词: 建模预测, 肠道菌群, 瘤胃球菌, 机器学习

Abstract:

The study used machine learning model to construct a non-invasive evaluation model of diseases based on the abundance of Ruminococus to explore the value of intestinal flora in the prediction of disease types. Data in R library was used to download data from different studies. Abundance of Ruminococcus， study condition， disease state， age， sex， antibiotic use， region， smoking situation， and other information of human samples were selected， and the evaluation model of disease screening was established by using machine learning classification models such as random forest， decision tree and Adaboost. The parameters were adjusted by GridSearchCV， and the external verification results were evaluated by using a confusion matrix. Three evaluation models were established based on the abundance of Ruminococcus and the general information of samples such as sex and age. The random forest model had the highest accuracy （0.884）. In addition， when n_estimators was 220， the score was 0.892， which was the best model. The external validation results also showed that the classification algorithm in the visible model predicted relatively few errors， and the model performed well. According to the metagenomic data of fecal samples， the random forest algorithm can effectively predict the disease types based on the abundance of Ruminococcus.

Key words: modeling prediction, intestinal flora, Ruminococcus, machine learning

中图分类号:

Q939.93

徐婷, 沈佳豪, 赵康, 黄鹭, 董恩惠, 曾可心, 卞新为, 季明辉, 许勤. 基于瘤胃球菌微生物群丰度构建疾病类型预测的肠道菌群标签[J]. 生物技术进展, 2024, 14(2): 323-330.

Ting XU, Jiahao SHEN, Kang ZHAO, Lu HUANG, Enhui DONG, Kexin ZENG, Xinwei BIAN, Minghui JI, Qin XU. Bacterial Signature for Prediction of Disease Type Based on Abundance of Ruminococcus[J]. Current Biotechnology, 2024, 14(2): 323-330.

图/表 9

参考文献 42

1	NISHINO K, NISHIDA A, INOUE R, et al.. Analysis of endoscopic brush samples identified mucosa-associated dysbiosis in inflammatory bowel disease[J]. J. Gastroenterol., 2018, 53(1): 95-106.
2	JIE Z, XIA H, ZHONG S L, et al.. The gut microbiome in atherosclerotic cardiovascular disease[J/OL]. Nat. Commun., 2017, 8: 845[2024-01-20]. .
3	DELEDDA A, ANNUNZIATA G, TENORE G C, et al.. Diet-derived antioxidants and their role in inflammation, obesity and gut microbiota modulation[J/OL]. Antioxid. Basel, 2021, 10(5): 708[2024-01-20]. .
4	计梦蕾,俞海国.微生物组学在免疫性疾病中的研究进展[J].中华实用儿科临床杂志,2019,34(17):1358-1360.
	JI M L, YU H G. Study progress of microbiome in immune diseases[J]. Chin. J. Appl. Clin. Pediatr., 2019, 34(17): 1358-1360.
5	谢雅静,时晓敏,颜世敢,等.肠道菌群与精神类疾病相关性研究进展[J].中国药理学通报,2022,38(11):1617-1622.
	XIE Y J, SHI X M, YAN S G, et al.. Progress on correlation between intestinal flora and mental diseases[J]. Chin. Pharmacol. Bull., 2022, 38(11): 1617-1622.
6	LOOMBA R, SEGURITAN V, LI W, et al.. Gut microbiome-based metagenomic signature for non-invasive detection of advanced fibrosis in human nonalcoholic fatty liver disease[J]. Cell Metab., 2017, 25(5): 1054-1062.
7	张昕雨,张璟,朱小强,等.基于宏基因组学分析构建诊断大肠癌的肠道菌群标签[J].上海交通大学学报(医学版),2018,38(9):1019-1026.
	ZHANG X Y, ZHANG J, ZHU X Q, et al.. Bacterial signatures for diagnosis of colorectal cancer by fecal metagenomics analysis[J]. J. Shanghai Jiaotong Univ. Med. Sci., 2018, 38(9): 1019-1026.
8	全睿琳.基于全国多中心前瞻性登记注册队列的动脉性肺动脉高压临床与预后预测研究[D].北京:中国医学科学院,2022.
9	MADILIGAMA A, VANDERVORT Z, KHAN A. Consecutive rate model for covid infections and deaths and prediction of level-off time[J]. ACS Omega, 2022, 7(51): 48059-48066.
10	吴桐,王鸿超,陆文伟,等.肥胖人群肠道菌群特征分析及机器学习模型[J].微生物学通报,2020,47(12):4328-4337.
	WU T, WANG H C, LU W W, et al.. Characteristics of gut microbiota of obese people and machine learning model[J]. Microbiol. China, 2020, 47(12): 4328-4337.
11	ARUMUGAM M, RAES J, PELLETIER E, et al.. Enterotypes of the human gut microbiome[J]. Nature, 2011, 473: 174-180.
12	LA REAU A J, SUEN G. The Ruminococci: key symbionts of the gut ecosystem[J]. J. Microbiol., 2018, 56(3): 199-208.
13	XU J, LIANG R, ZHANG W, et al.. Faecalibacterium prausnitzii-derived microbial anti-inflammatory molecule regulates intestinal integrity in diabetes mellitus mice via modulating tight junction protein expression[J]. J. Diabetes, 2020, 12(3): 224-236.
14	YANG J, WANG P, LIU T, et al.. Involvement of mucosal flora and enterochromaffin cells of the caecum and descending colon in diarrhoea-predominant irritable bowel syndrome[J/OL]. BMC Microbiol., 2021, 21(1): 316[2024-01-20]. .
15	崔小缓,蒋兴旺,张延平,等.咽喉反流性疾病患者肠道菌群变化的初步研究[J].听力学及言语疾病杂志,2021,29(3):282-288.
	CUI X H, JIANG X W, ZHANG Y P, et al.. Intestinal microbiota analysis of patient with laryngopharyngeal reflux disease[J]. J. Audiol. Speech Pathol., 2021, 29(3): 282-288.
16	HSIEH C S, RENGARAJAN S, KAU A, et al.. Altered IgA response to gut bacteria is associated with childhood asthma in Peru [J]. J. Immunol., 2021, 207(2): 398-407.
17	AHN J R, LEE S H, KIM B, et al.. Ruminococcus gnavus ameliorates atopic dermatitis by enhancing Treg cell and metabolites in BALB/c mice[J/OL]. Pediatr. Allergy Immunol., 2022, 33(1): e13678[2024-01-20]. .
18	KIM J W, KWOK S K, CHOE J Y, et al.. Recent advances in our understanding of the link between the intestinal microbiota and systemic lupus erythematosus[J/OL]. Int. J. Mol. Sci., 2019, 20(19): 4871[2024-01-20]. .
19	CHEN M, XIE C R, SHI Y Z, et al.. Gut microbiota and major depressive disorder: a bidirectional Mendelian randomization[J]. J. Affect Disord., 2022, 316: 187-193.
20	LIÑARES-BLANCO J, FERNANDEZ-LOZANO C, SEOANE J A, et al.. Machine learning based microbiome signature to predict inflammatory bowel disease subtypes[J/OL]. Front. Microbiol., 2022, 13: 872671[2024-01-20]. .
21	BANG S, YOO D, KIM S J, et al.. Establishment and evaluation of prediction model for multiple disease classification based on gut microbial data[J/OL]. Sci. Rep., 2019, 9: 10189[2024-01-20]. .
22	李杰其,胡良兵.基于机器学习的设备预测性维护方法综述[J].计算机工程与应用,2020,56(21):11-19.
	LI J Q, HU L B. Review of machine learning for predictive maintenance[J]. Comput. Eng. Appl., 2020, 56(21): 11-19.
23	李倩, 刘芸宏, 吴晓慧, 等. 基于决策树和Logistic回归预测出血性脑卒中手术后医院感染风险 [J]. 中华医院感染学杂志, 2021,31(23):3556-3561.
	LI Q, LIU Y H, WU X H, et al.. A study on nosocomial infection risk of patients undergoing hemorrhagic stroke surgery based on decision tree and Logistic regression[J]. Chin. J. Nosocomiol., 2021, 31(23): 3556-3561.
24	李承圣,包绮晗,郝晓燕,等.基于随机森林算法的胰腺癌术后预测模型构建[J].吉林大学学报(医学版),2022,48(2):426-435.
	LI C S, BAO Q H, HAO X Y, et al.. Establishment of prediction model for postoperative pancreatic cancer based on random forest algorithm[J]. J. Jilin Univ. Med. Ed., 2022, 48(2): 426-435.
25	叶琳,石胜源,罗铁清.AdaBoost算法在乳腺癌疾病预测中的研究[J].计算机时代,2021(7):61-64.
	YE L, SHI S Y, LUO T Q. Study of AdaBoost algorithm application in breast cancer disease prediction[J]. Comput. Era, 2021(7): 61-64.
26	王新,王炯杰,王雷,等.基于CHAID决策树和Logistic回归的肺癌患者术后肺部并发症预测效果的研究[J].临床肿瘤学杂志,2021,26(10):898-902.
	WANG X, WANG J J, WANG L, et al.. Prediction of postoperative pulmonary complications in patients with lung cancer based on CHAID decision tree and logistic regression[J]. Chin. Clin. Oncol., 2021, 26(10): 898-902.
27	李强,衣杨,吴忠道,等.基于机器学习的肠道菌群数据建模与分析研究综述[J].微生物学通报,2021,48(1):180-196.
	LI Q, YI Y, WU Z D, et al.. Review of gut microbiome analysis prediction models and algorithms[J]. Microbiol. China, 2021, 48(1): 180-196.
28	WANG R, CAI L, ZHANG J, et al.. Prediction of acute respiratory distress syndrome in traumatic brain injury patients based on machine learning algorithms[J/OL]. Med. Kaunas, 2023, 59(1): 171[2024-01-20]. .
29	FRANZOSA E A, MCIVER L J, RAHNAVARD G, et al.. Species-level functional profiling of metagenomes and metatranscriptomes[J]. Nat. Meth., 2018, 15: 962-968.
30	BAMPTON P, DRAPER B. Effect of relaxation music on patient tolerance of gastrointestinal endoscopic procedures[J]. J. Clin. Gastroenterol., 1997, 25(1): 343-345.
31	LIPSCOMB C E. Medical subject headings (MeSH)[J]. Bull. Med. Libr. Assoc., 2000, 88(3): 265-266.
32	SUI W, WAN L H. Association between patient activation and medication adherence in patients with stroke: a cross-sectional study[J/OL]. Neurology, 2021, 12: 722711[2024-01-20]. .
33	SU Q, LIU Q, LAU R I, et al.. Faecal microbiome-based machine learning for multi-class disease diagnosis[J/OL]. Nat. Commun., 2022, 13: 6818[2024-01-20]. .
34	HENKE M T, KENNY D J, CASSILLY C D, et al.. Ruminococcus gnavus, a member of the human gut microbiome associated with Crohn's disease, produces an inflammatory polysaccharide[J]. Proc. Natl. Acad. Sci. USA, 2019, 116(26): 12672-12677.
35	JOOSSENS M, HUYS G, HUYS G, et al.. Dysbiosis of the faecal microbiota in patients with Crohn's disease and their unaffected relatives[J]. Gut, 2011, 60(5): 631-637.
36	YAN H, QIN Q, CHEN J, et al.. Gut microbiome alterations in patients with visceral obesity based on quantitative computed tomography[J/OL]. Cell Infect. Microbiol., 2021, 11: 823262[2024-01-20]. .
37	CERQUEIRA F M, PHOTENHAUER A L, DODEN H L, et al.. Sas20 is a highly flexible starch-binding protein in the Ruminococcus bromii cell-surface amylosome[J/OL]. J. Biol. Chem., 2022, 298(5): 101896[2024-03-19]. .
38	MARKOWIAK-KOPEĆ P, ŚLIŻEWSKA K. The effect of probiotics on the production of short-chain fatty acids by human intestinal microbiome[J/OL]. Nutrients, 2020, 12(4): 1107[2024-01-20]. .
39	沈倩, 张军. 丁酸盐在炎症性肠病中的作用研究进展[J]. 胃肠病学和肝病学杂志, 2022(5): 031.
	SHEN Q, ZHANG J. Research progress on the role of butyrate in inflammatory bowel disease[J]. Chin. J. Gastroenterol. Hepatol., 2022 (5): 031.
40	SINGH V, LEE G, SON H, et al.. Butyrate producers, "The Sentinel of Gut": their intestinal significance with and beyond butyrate, and prospective use as microbial therapeutics[J/OL]. Front. Microbiol., 2022, 13: 1103836[2024-01-20]. .
41	PALACIOS T, VITETTA L, COULSON S, et al.. Targeting the intestinal microbiota to prevent type 2 diabetes and enhance the effect of metformin on glycaemia: a randomised controlled pilot study[J/OL]. Nutrients, 2020, 12(7): 2041[2024-01-20]. .
42	AHRENS A P, CULPEPPER T, SALDIVAR B, et al.. A six-day, lifestyle-based immersion program mitigates cardiovascular risk factors and induces shifts in gut microbiota, specifically Lachnospiraceae, Ruminococcaceae, Faecalibacterium prausnitzii: a pilot study[J/OL]. Nutrients, 2021, 13(10): 3459[2024-01-20]. .

序号	命名
1	Ruminococcus_gnavus
2	Ruminococcus_torques
3	Ruminococcus_albus
4	Ruminococcus_bromii
5	Ruminococcus_callidus
6	Ruminococcus_champanellensis
7	Ruminococcus_flavefaciens
8	Ruminococcus_lactaris
9	Ruminococcaceae_Faecalibacterium_prausnitzii
10	Ruminococcaceae_bacterium_D16
11	Ruminococcaceae
12	Ruminococcus

序号	命名
1	Ruminococcus_gnavus
2	Ruminococcus_torques
3	Ruminococcus_albus
4	Ruminococcus_bromii
5	Ruminococcus_callidus
6	Ruminococcus_champanellensis
7	Ruminococcus_flavefaciens
8	Ruminococcus_lactaris
9	Ruminococcaceae_Faecalibacterium_prausnitzii
10	Ruminococcaceae_bacterium_D16
11	Ruminococcaceae
12	Ruminococcus

序号	指标	编码
1	健康	1
2	炎症性疾病（支气管炎、膀胱炎、耳炎、肺炎）	2
3	动脉粥样硬化	3
4	肿瘤	4
5	高血压	5
6	糖尿病	6
7	传染病	7
8	其他	0

序号	指标	编码
1	健康	1
2	炎症性疾病（支气管炎、膀胱炎、耳炎、肺炎）	2
3	动脉粥样硬化	3
4	肿瘤	4
5	高血压	5
6	糖尿病	6
7	传染病	7
8	其他	0

系列序号	指标	指标代码	变量数量
1	性别	NA：0；男：1；女：2	3
2	年龄组别	新生儿：1；儿童：2；成年人：3；老年人：4	4
3	是否用抗生素	NA：0；使用：1；未使用：2	3
4	是否吸烟	NA：0；吸烟：1；不吸烟：2	3
5	是否曾经吸烟	NA：0；曾经吸烟：1；不吸烟：2	3
6	国别	NA：0；加拿大：1；中国：2；芬兰：3；以色列：4；荷兰：5；俄罗斯：6；瑞典：7；美国：8	9

基于瘤胃球菌微生物群丰度构建疾病类型预测的肠道菌群标签

Bacterial Signature for Prediction of Disease Type Based on Abundance of Ruminococcus

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 42

相关文章 12

编辑推荐

Metrics

本文评价

模型	平均值	标准误	95% CI下限	95% CI上限
随机森林	0.884	0.013	0.876	0.891
决策树	0.850	0.017	0.839	0.861
Adaboost	0.719	0.018	0.707	0.723

n_estimators	平均得分	n_estimators	平均得分
1	0.820	150	0.886
10	0.870	160	0.889
20	0.886	170	0.886
30	0.877	180	0.887
40	0.878	190	0.886
50	0.873	200	0.889
60	0.884	210	0.887
70	0.883	220	0.892
80	0.884	230	0.892
90	0.887	240	0.887
100	0.883	250	0.892
110	0.884	260	0.890
120	0.881	270	0.887
130	0.884	280	0.887
140	0.886	290	0.889

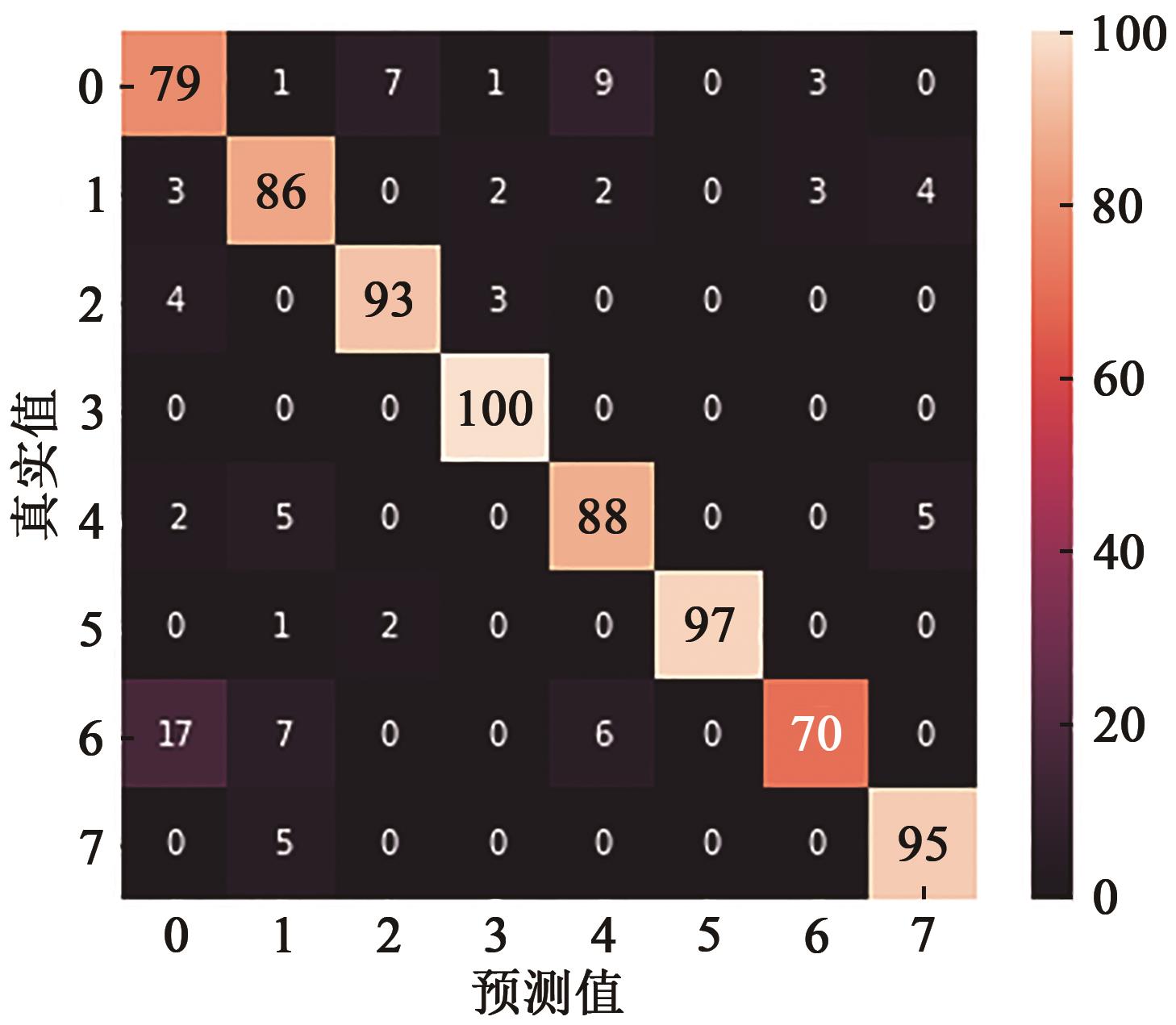

	精确率	召回率	准确率	F1 值
0	0.752	0.790	0.885	0.882
1	0.819	0.860
2	0.912	0.930
3	0.943	1.000
4	0.838	0.880
5	1.000	0.970
6	0.921	0.700
7	0.913	0.950
平均值	0.887	0.885
