小反刍兽疫病毒H蛋白的原核表达及免疫原性测定

doi:10.19586/j.2095-2341.2021.0039

生物技术进展 ›› 2021, Vol. 11 ›› Issue (6): 770-776.DOI: 10.19586/j.2095-2341.2021.0039

小反刍兽疫病毒H蛋白的原核表达及免疫原性测定

李丹(), 宋浩志, 高维崧, 刘兴健, 张志芳, 李轶女()

中国农业科学院生物技术研究所，北京 100081

收稿日期:2021-03-25 接受日期:2021-06-02 出版日期:2021-11-25 发布日期:2021-11-26
通讯作者: 李轶女
作者简介:李丹 E-mail：lidancaas@163.com；
基金资助:
国家重点研发计划项目(2016YFD0500108);国家自然科学基金项目(32072796)

Prokaryotic Expression and Immunogenicity Detection of the H Protein of Peste des Petits Ruminants Virus

Dan LI(), Haozhi SONG, Weisong GAO, Xingjian LIU, Zhifang ZHANG, Yinyu LI()

Biotechnology Research Institute，Chinese Academy of Agricultural Sciences，Beijing 100081，China

Received:2021-03-25 Accepted:2021-06-02 Online:2021-11-25 Published:2021-11-26
Contact: Yinyu LI

摘要/Abstract

摘要：

小反刍兽疫是由小反刍兽疫病毒（peste des petits ruminants virus，PPRV）引起的急性、接触性传染病，对我国的畜牧业发展造成了严重的影响，目前主要通过疫苗进行防控。为检测PPRV主要抗原蛋白血凝素（hemagglutinin，H）蛋白的免疫原性，从GenBank数据库中查找了近年来公布的H蛋白氨基酸序列，选择1条符合我国流行趋势的序列，对其基因序列进行优化合成后克隆至pET28a载体上。筛选出表达量高的Rosetta（DE3）菌株进行表达，表达产物经SDS?PAGE、Western Blot及质谱分析鉴定。经镍柱亲和层析纯化出单一H蛋白，取20 μg与佐剂混合后免疫小鼠，收集血清进行抗体效价检测，结果显示，血清中H蛋白抗体滴度在二免2周时达到1∶6 400，表明H蛋白具有较好的免疫原性。进一步对二免2周时血清进行中和抗体检测显示，小鼠血清对PPRV疫苗株具有中和效应，中和效价不超过1∶40。研究结果对H蛋白用于PPRV疫苗的研发提供了理论依据。

关键词: 小反刍兽疫病毒, 血凝素蛋白, 疫苗, 大肠杆菌表达系统

Abstract:

Peste des petits ruminants is an acute and contagious infectious disease caused by the peste des petitis ruminant virus （PPRV）， which has a serious impact on the development of China's animal husbandry. At present， vaccination is the main method of prevention and control. In order to detect the main antigen protein hemagglutinin （H） protein of PPRV， searched its amino acid sequence published in recent years from the GenBank databases， and selected a sequence that conformed to the popular trend in China. The gene sequence was optimized and synthesized， and then cloned into the pET28a vector. The high?expressing Rosetta （DE3） strain was selected for expression and the product was identified by SDS?PAGE， Western Blot and mass spectrometry analysis. A single H protein was purified by nickel column affinity chromatography， and 20 μg H protein was mixed with adjuvant to immunize mice， and serum was collected for antibody titer detection. The results showed that the serum antibody titer reached 1：6 400 after two weeks of the second immunization， indicating that H protein has good immunogenicity. Further testing of neutralizing antibodies on this serum showed that it had a neutralizing effect on the PPRV vaccine strain， and the neutralizing titer did not exceed 1：40. The results provide a theoretical basis for the use of H protein in the development of PPRV vaccines.

Key words: peste des petits ruminants virus, hemagglutinin protein, vaccine, Escherichia coli expression system

中图分类号:

S852

李丹, 宋浩志, 高维崧, 刘兴健, 张志芳, 李轶女. 小反刍兽疫病毒H蛋白的原核表达及免疫原性测定[J]. 生物技术进展, 2021, 11(6): 770-776.

Dan LI, Haozhi SONG, Weisong GAO, Xingjian LIU, Zhifang ZHANG, Yinyu LI. Prokaryotic Expression and Immunogenicity Detection of the H Protein of Peste des Petits Ruminants Virus[J]. Current Biotechnology, 2021, 11(6): 770-776.

图/表 6

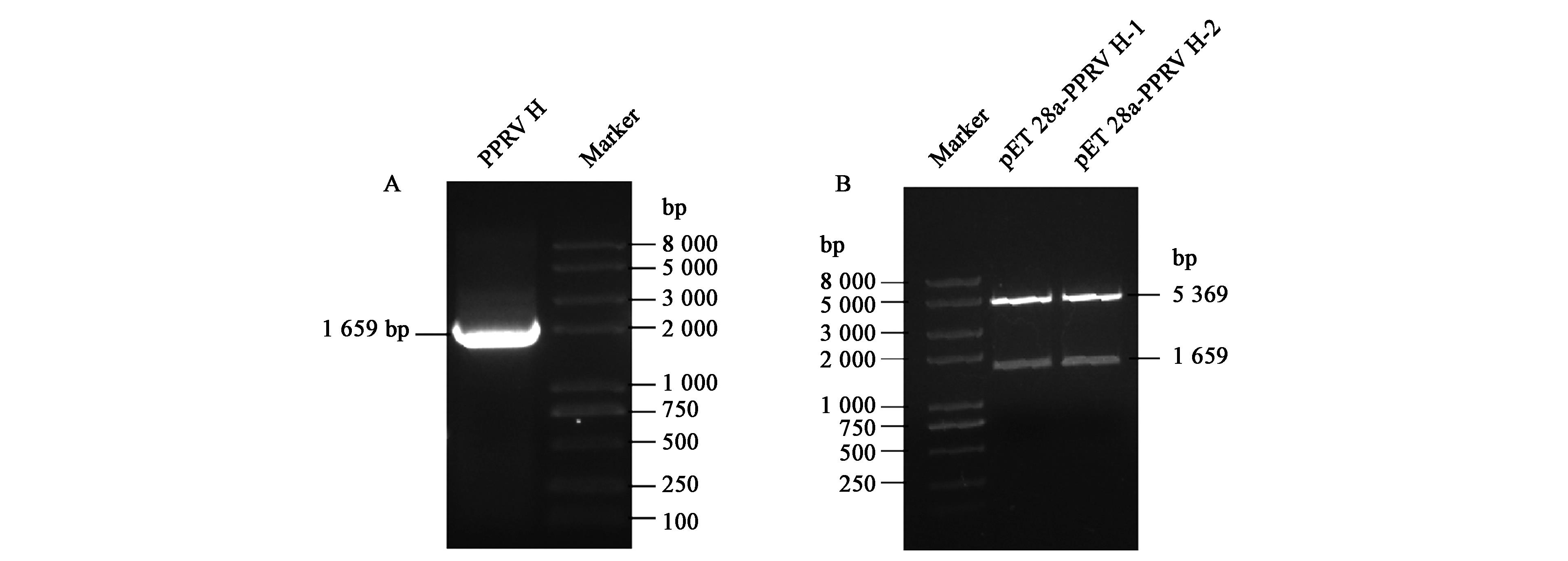

图1 目的基因的PCR扩增及重组质粒的BamHⅠ、EcoRⅠ酶切鉴定A：目的基因的PCR扩增。PPRV H—以pUC57?PPRV H为模板的PCR扩增产物。B：重组质粒的BamH Ⅰ、EcoR Ⅰ酶切鉴定。pET 28a?PPRV H?1～2—重组质粒pET 28a?PPRV H经BamH Ⅰ、EcoRⅠ双酶切后产物。

Fig.1 PCR amplification of the target gene and BamH Ⅰ and EcoR Ⅰ digestion identification of the recombinant plasmid

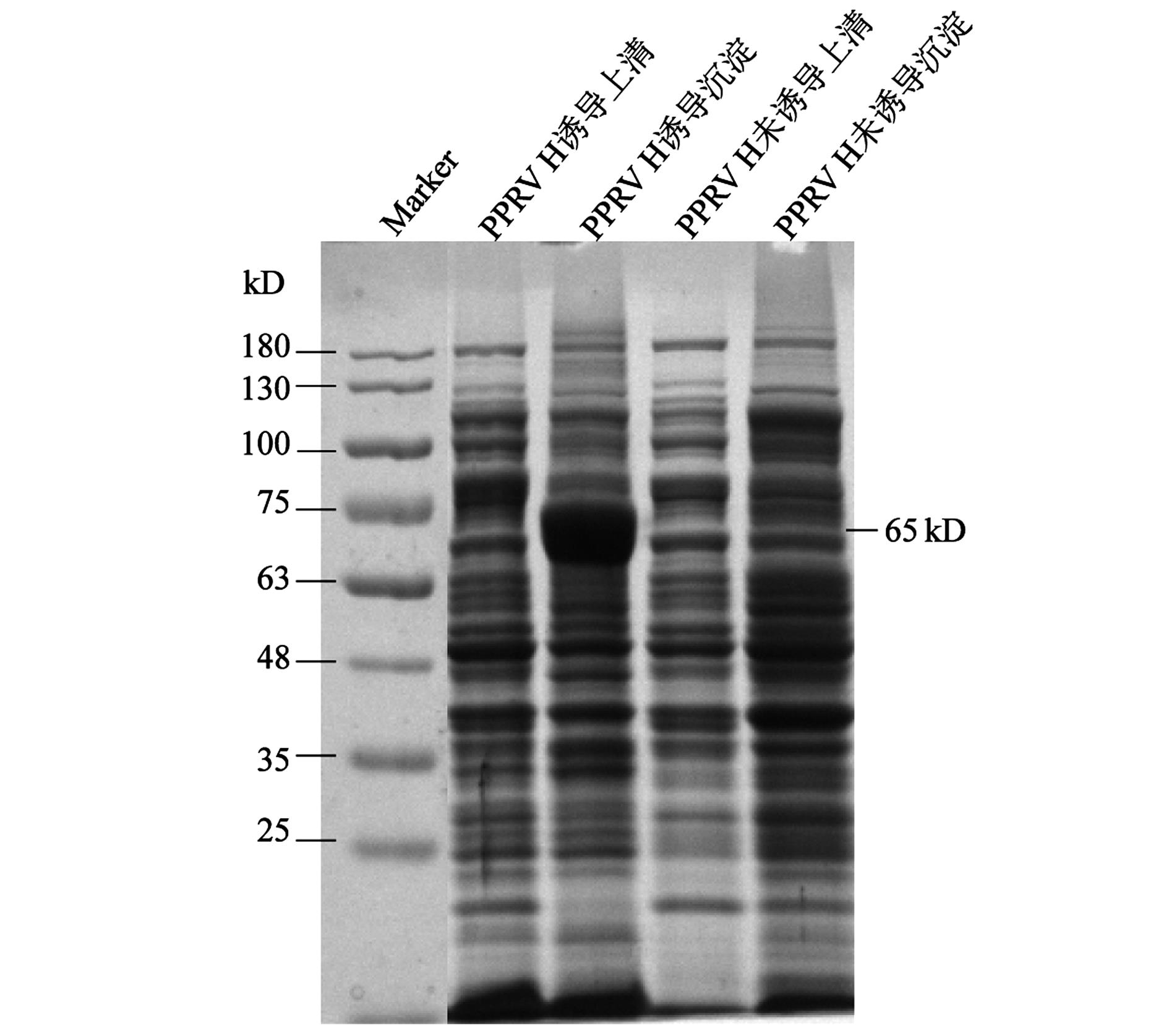

图2 重组蛋白在Rosetta菌株中的诱导表达

Fig.2 Induced expression of recombinant protein in Rosetta strains

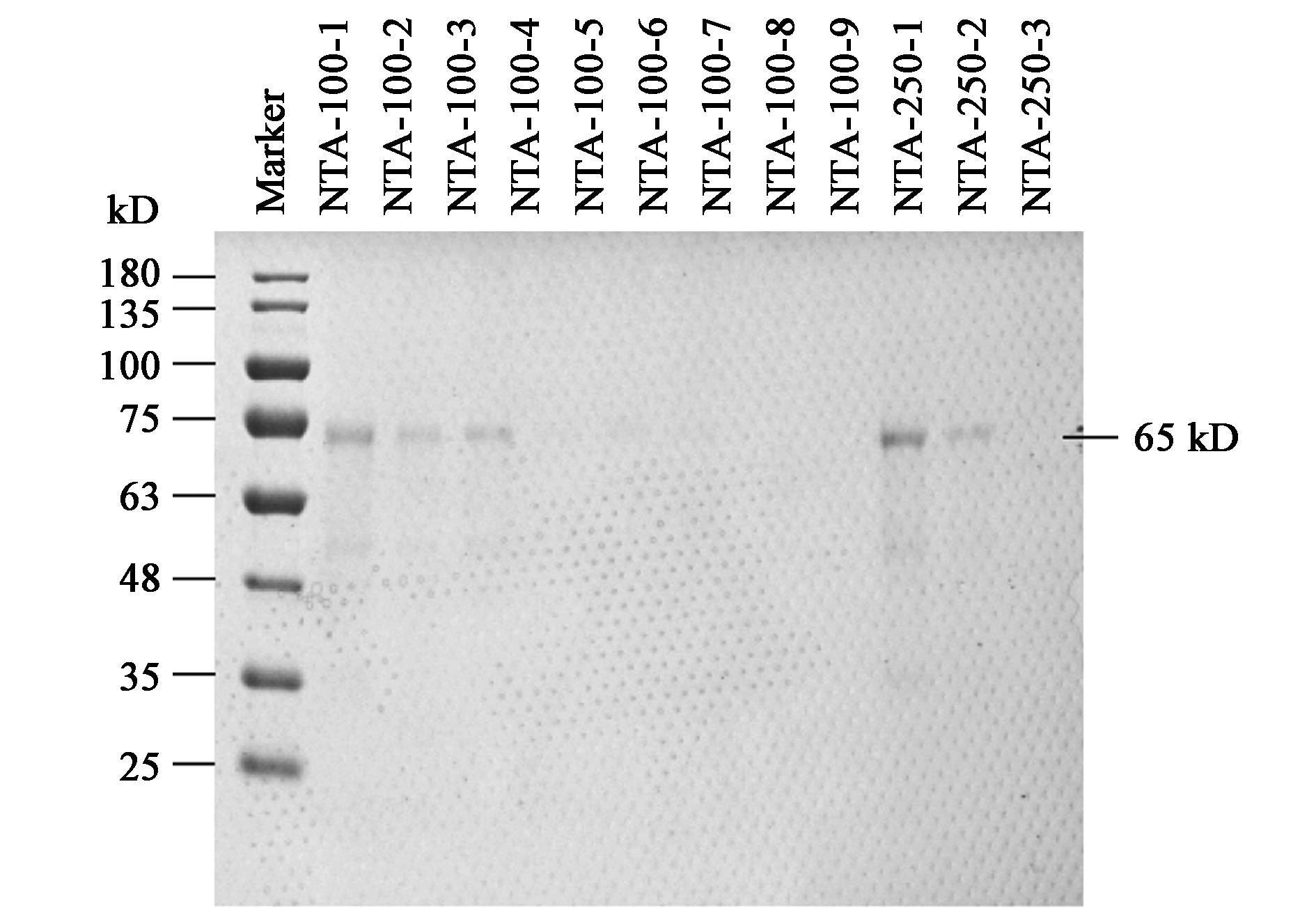

图3 重组蛋白的镍柱亲和纯化注：NTA100及NTA250为PPRV H蛋白的不同浓度咪唑洗脱样品。

Fig. 3 Nickel column affinity purification of recombinant protein

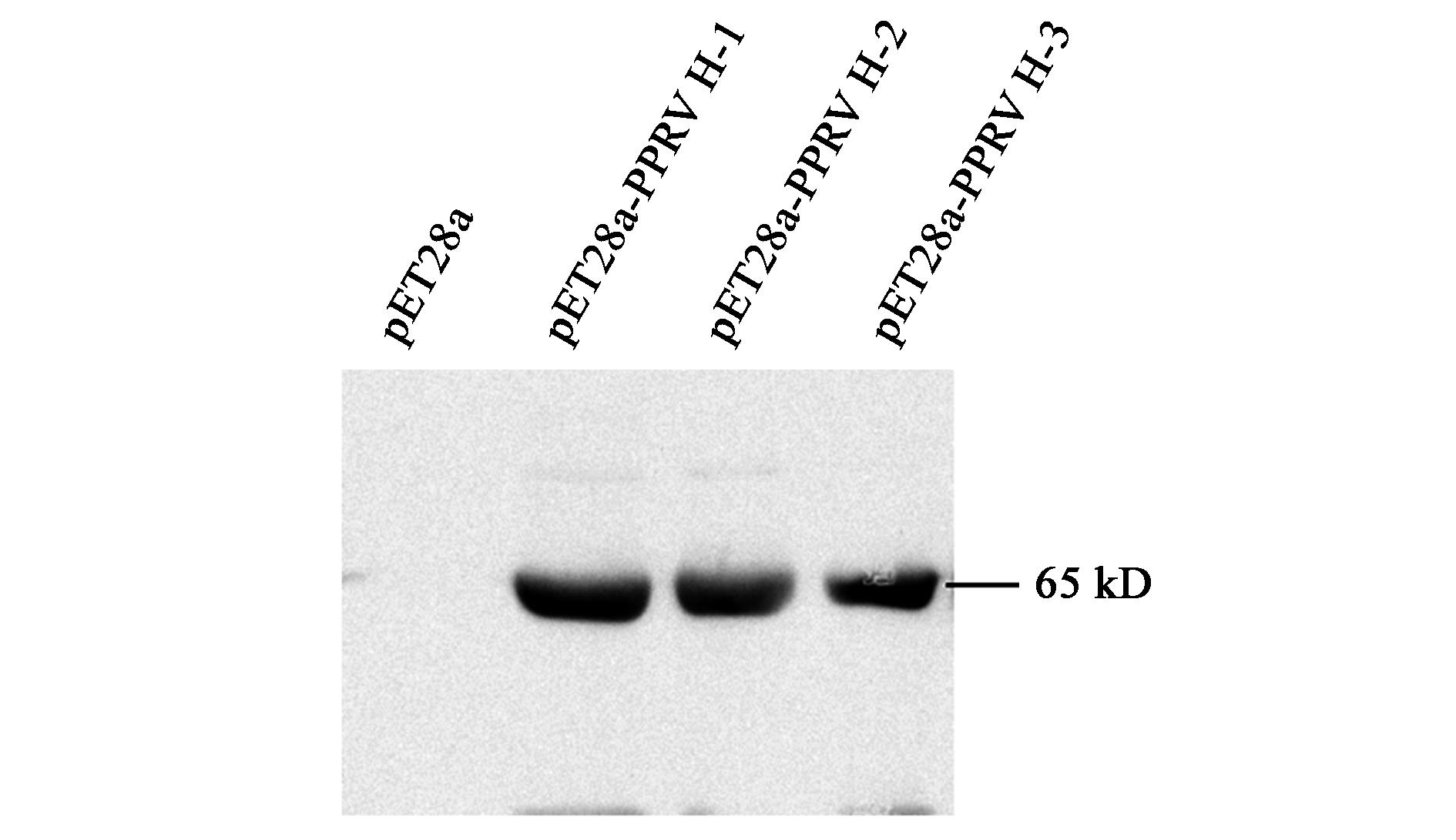

图4 重组蛋白的Western blot分析注：pET28a—空载体经表达纯化后所得样品；pET28a?PPRV H?1~3—pET28a?PPRV H经表达纯化后所得蛋白样品。

Fig.4 Western blot analysis of recombinant protein

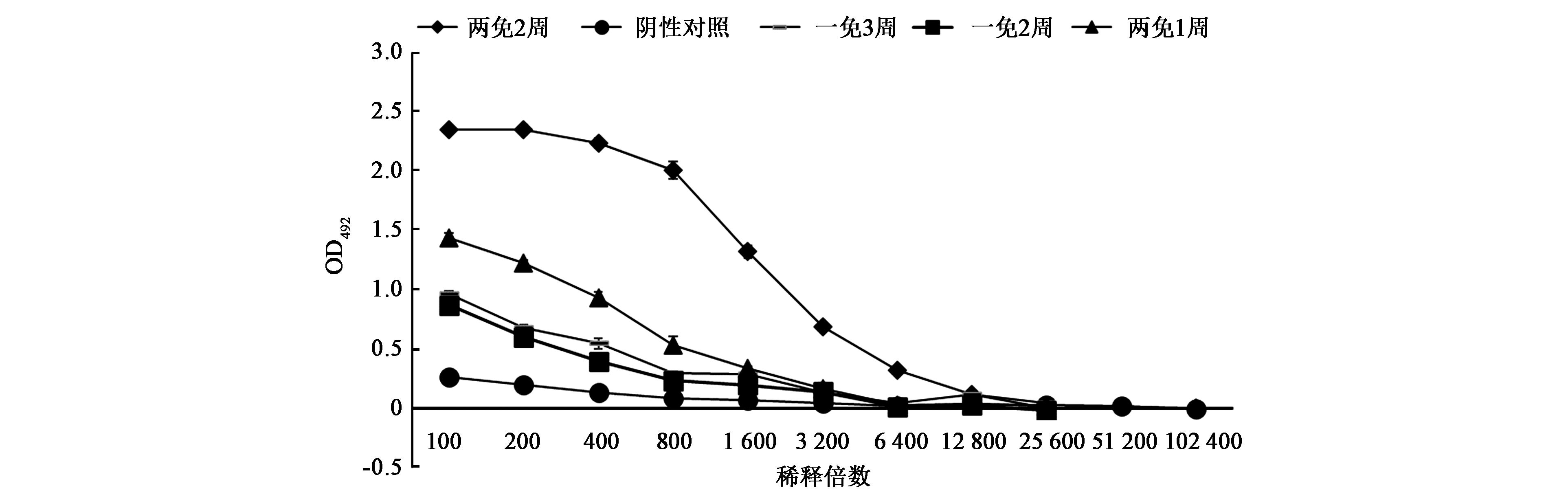

图5 重组蛋白免疫小鼠后引起的抗体效价检测

Fig.5 Detection of antibody titer caused by recombinant protein immunization in mice

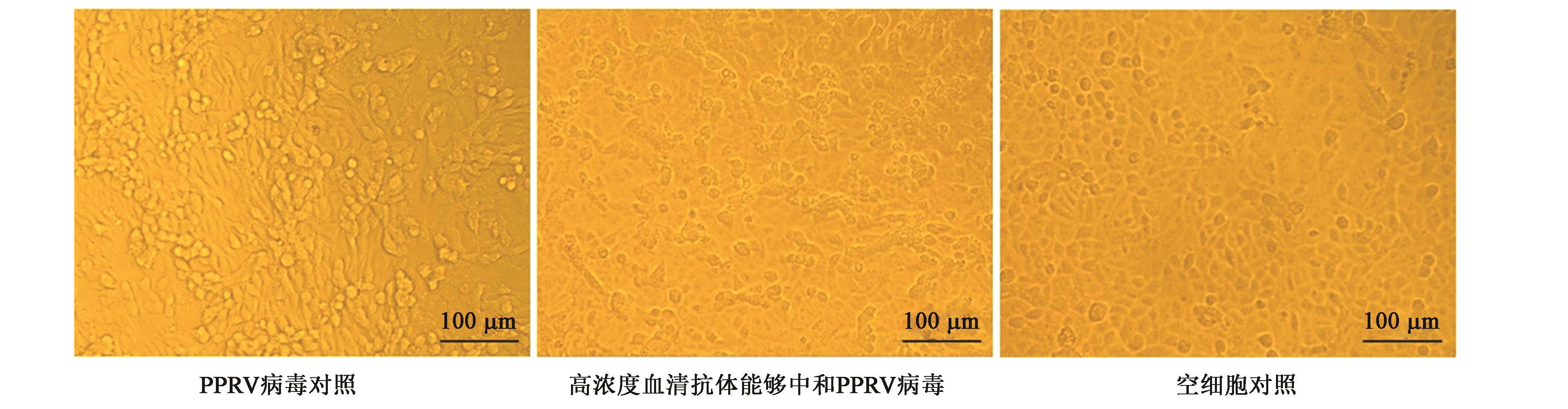

图6 不同稀释度血清抗体对PPRV病毒的中和效应

Fig.6 Neutralizing effect of different concentrations of serum antibodies on PPRV virus

参考文献 24

1	王净,李学涛,王树红.小反刍兽疫流行状况分析与防控对策[J].今日畜牧兽医,2018,34(01):35-36.
2	ADOMBI C M, WAQAS A, DUNDON W G, et al.. Peste des petits ruminants in benin: persistence of a single virus genotype in the country for over 42 years[J]. Transbound. Emerg. Dis., 2017, 64(4): 1037-1044.
3	KUMAR N, MAHERCHANDANI S, KASHYAP S K, et al.. Peste des petits ruminants virus infection of small ruminants: a comprehensive review[J]. Viruses, 2014, 6(6): 2287-2327.
4	AL-NAEEM A, ELZEIN E M, AL-AFALEQ A I. Epizootiological aspects of peste des petits ruminants and rinderpest in sheep and goats in saudi arabia[J]. Rev. Sci. Tech., 2000, 19(3): 855-858.
5	郭敏华,陈维.羊小反刍兽疫的临床诊断[J].兽医导刊,2016(4):170.
6	李玉东.小反刍兽疫及其防控措施[J].中国畜牧兽医文摘,2014(8):89-90.
7	王善辉,高三阳,沈志强.小反刍兽疫疫苗的研究进展[J].黑龙江畜牧兽医,2011(21):28-30.
8	曹冬伸,赵柏林,曲萍,等.小反刍兽疫基因工程疫苗研究进展[J].动物医学进展,2015(11):101-105.
9	高位相,张明,于瑞嵩,等.小反刍兽疫(PPR)疫苗研究进展[J].畜牧与兽医,2015,47(07):132-136.
10	范大鹏.基因工程疫苗在动物疾病防治中的应用[J].现代畜牧科技,2019(03):141-142.
11	MAHAPATRA M, SELVARAJ M, PARIDA S. Comparison of immunogenicity and protective efficacy of PPR live attenuated vaccines (Nigeria75/1 and Sungri 96) administered by intranasal and subcutaneous routes[J/OL]. Vaccines, 2020, 8(2):168[2021-09-29] . https.//doi.org/10.3390/vaccines8020168.
12	WANG Y, YUE X, JIN H, et al.. A suicidal DNA vaccine expressing the fusion protein of peste des petits ruminants virus induces both humoral and cell-mediated immune responses in mice[J]. J. Virol. Methods, 2015, 225: 35-40.
13	YAN F, BANADYGA L, ZHAO Y, et al.. Peste des petits ruminants virus-like particles induce a potent humoral and cellular immune response in goats[J/OL]. Viruses, 2019, 11(10): 918[2021-09-29] . https.//doi.org/10.3390/v11100918.
14	赵玲娜.小反刍兽疫病毒H蛋白对病毒增殖的影响[D].北京:中国农业科学院,硕士学位论文,2016.
15	SETH S, SHAILA M S. The hemagglutinin-neuraminidase protein of peste des petits ruminants virus is biologically active when transiently expressed in mammalian cells[J]. Virus Res., 2001, 75(2): 169-177.
16	DIALLO A, MINET C, LE GOFF C, et al.. The threat of peste des petits ruminants: progress in vaccine development for disease control[J]. Vaccine, 2007, 25(30): 5591-5597.
17	LI W, JIN H, SUI X, et al.. Self-assembly and release of peste des petits ruminants virus-like particles in an insect cell-baculovirus system and their immunogenicity in mice and goats[J/OL]. PLoS ONE, 2014, 9(8): e104791[2021-09-29] . https.//doi.org/10.1371
	/journal.pone.0104791.
18	张伟业.口蹄疫病毒铁蛋白纳米颗粒抗原的表达与鉴定[D].北京:中国农业科学院,硕士学位论文,2020.
19	KUMAR S, STECHER G, LI M, et al. Mega X: molecular evolutionary genetics analysis across computing platforms[J]. Mol. Biol. Evol., 2018,35(6):1547-1549.
20	田晓灵,赵永刚,宋厚辉,等. 小反刍兽疫H蛋白主要抗原表位的原核表述 [J]. 中国动物检疫, 2009, 26(03): 28-30.
21	陈勇军.猪繁殖与呼吸综合征病毒(PRRSV)GP5蛋白跨膜区删除对小鼠免疫效果的影响[D].南京:南京农业大学,硕士学位论文,2006.
22	丁军颖,伊瑶,卢学新,等.不同温度、时间、IPTG和菌种浓度对丁肝抗原蛋白表达量的影响[J]. 医学研究杂志,2012,41(05):31-34.
23	王劼,蒋思文,彭健.重组K88黏附素亚单位蛋白在大肠杆菌中的诱导表达[J].农业生物技术学报,2006,14(06):957-962.
24	于瑞嵩,高位相,李凤平,等.西藏株小反刍兽疫病毒H蛋白的原核表达及其多克隆抗体的制备[J].微生物学通报,2018,45(10):2183-2190.
