基于生物信息学分析林奇综合征相关结直肠癌关键Hub基因的筛选与功能富集分析

doi:10.19586/j.2095-2341.2022.0122

生物技术进展 ›› 2023, Vol. 13 ›› Issue (2): 291-297.DOI: 10.19586/j.2095-2341.2022.0122

• 研究论文 • 上一篇

基于生物信息学分析林奇综合征相关结直肠癌关键Hub基因的筛选与功能富集分析

朱兴墅¹(), 黄军杰¹, 翁才明², 刘旺武², 陈永元², 陈惠燕², 赵虎²^,³, 王瑜²^,³, 林承志²^,³()

^1.福建中医药大学中西医结合学院，福州 350122
^2.福建医科大学福总临床医学院（第九〇〇医院），福州 350025
^3.中国人民解放军联勤保障部队第九〇〇医院，福州 350025

收稿日期:2022-07-01 接受日期:2022-08-18 出版日期:2023-03-25 发布日期:2023-04-07
通讯作者: 林承志
作者简介:朱兴墅 E-mail: 862379991@qq.com；
基金资助:
国家自然科学基金青年项目(82003002);福建省引导项目(2021Y0061);福建医科大学科研发展基金项目(2021QH1322)

Screening and Functional Enrichment Analysis of Key Hub Genes in Lynch Syndrome-associated Colorectal Cancer Based on Bioinformatics Analysis

Xingshu ZHU¹(), Junjie HUANG¹, Caiming WENG², Wangwu LIU², Yongyuan CHEN², Huiyan CHEN², Hu ZHAO²^,³, Yu WANG²^,³, Chengzhi LIN²^,³()

^1.College of Integrated Medicine，Fujian University of Traditional Chinese Medicine，Fuzhou 350122，China
^2.Fuzhou General Clinical Medical College of Fujian Medical University （900TH Hospital），Fuzhou 350025，China
^3.900TH Hospital of Joint Logistics Support Force，Fuzhou 350025，China

Received:2022-07-01 Accepted:2022-08-18 Online:2023-03-25 Published:2023-04-07
Contact: Chengzhi LIN

摘要/Abstract

摘要：

通过生物信息学方法筛选出与林奇综合征相关结直肠癌（colorectal cance，CRC）组织中的差异表达基因（differentially expressed genes，DEGs）。从基因表达总库（gene expression omnibus，GEO）下载林奇综合征相关CRC数据集GSE178516，使用GEO2R筛选DEGs，并在人类疾病数据库Malacards中获取CRC和林奇综合征疾病基因，3者的交集取为关键Hub基因，通过功能富集分析鉴定DEGs。利用String数据库构建蛋白质-蛋白质相互作用网络（protein-protein interaction，PPI），并使用Cytoscape软件对PPI网络进行可视化和模块分析。随后在easyGEO数据库中对差异表达基因进行表达验证。从GSE178516共鉴定出261个差异基因，包括117个上调基因和114个下调基因。这些基因与CRC和林奇综合征基因共交集出8个差异表达基因（TGFBR2、PTEN、POLD1、EXO1、EPCAM、CDKN2B、CCND1、BRCA1）。GO、KEGG富集分析显示，其功能主要富集在DNA代谢过程调控、内在凋亡信号通路、错配修复等方面；KEGG通路分析主要富集在CRC等相关癌症路径。通过PPI获得与67个差异表达蛋白存在相互作用关系的892个蛋白，并利用Cytoscape软件构建其重要模块，包含44个节点和630个节点作用关系。利用easyGEO网站对8个差异基因进行表达分析，发现8个基因在林奇综合征相关CRC患者中的表达均具有统计学差异。总体上，研究鉴定出的关键Hub基因有助于了解林奇综合征相关CRC发生和发展的分子机制，并为林奇综合征进展对CRC的诊断和治疗提供新的候选靶点。

关键词: 林奇综合征, 结直肠癌, 差异表达基因, Hub基因, 生物信息学

Abstract:

To screen the differentially expressed genes （DEGs） in Lynch syndrome related colorectal cancer （CRC） by various bioinformatic analysis. The dataset GSE178516 was downloaded from gene expression omnibus （GEO）. DEGs were screened by employing the GEO2R tool， and then intersected with the genes related to CRC and Lynch syndrome from the MalaCards to obtain the common differential genes. Then the functional enrichment analysis and protein-protein interaction （PPI） network was constructed by using String and Cytoscape software. Finally， expressions of the hub genes were verified by easyGEO database. A total of 261 differentially expressed genes were identified， consisting of 117 up-regulated genes and 114 down-regulated genes. After intersection with CRC and Lynch syndrome related genes， a total of 8 genes （TGFBR2， PTEN， POLD1， EXO1， EPCAM， CDKN2B， CCND1， BRCA1） were obtained. GO and KEGG enrichment analysis showed that their functions were mainly enriched in DNA metabolic process regulation， intrinsic apoptosis signaling pathway， mismatch repair， etc. Through PPI analysis， 892 proteins interacting with 8 common DEGs were obtained， including 44 nodes and 630 node interaction relationships. Finally， all 8 genes were statistically differentially expressed in patients with CRC associated with Lynch syndrome. The key Hub genes identified in this study would help us understand the molecular mechanisms behind the occurrence and development of Lynch syndrome combined with CRC， and ultimately provide new candidate targets for the diagnosis and treatment of Lynch syndrome progression to CRC.

Key words: Lynch syndrome, colorectal cancer, differentially expressed gene, Hub gene, bioinformatics

中图分类号:

Q811.4

朱兴墅, 黄军杰, 翁才明, 刘旺武, 陈永元, 陈惠燕, 赵虎, 王瑜, 林承志. 基于生物信息学分析林奇综合征相关结直肠癌关键Hub基因的筛选与功能富集分析[J]. 生物技术进展, 2023, 13(2): 291-297.

Xingshu ZHU, Junjie HUANG, Caiming WENG, Wangwu LIU, Yongyuan CHEN, Huiyan CHEN, Hu ZHAO, Yu WANG, Chengzhi LIN. Screening and Functional Enrichment Analysis of Key Hub Genes in Lynch Syndrome-associated Colorectal Cancer Based on Bioinformatics Analysis[J]. Current Biotechnology, 2023, 13(2): 291-297.

图/表 4

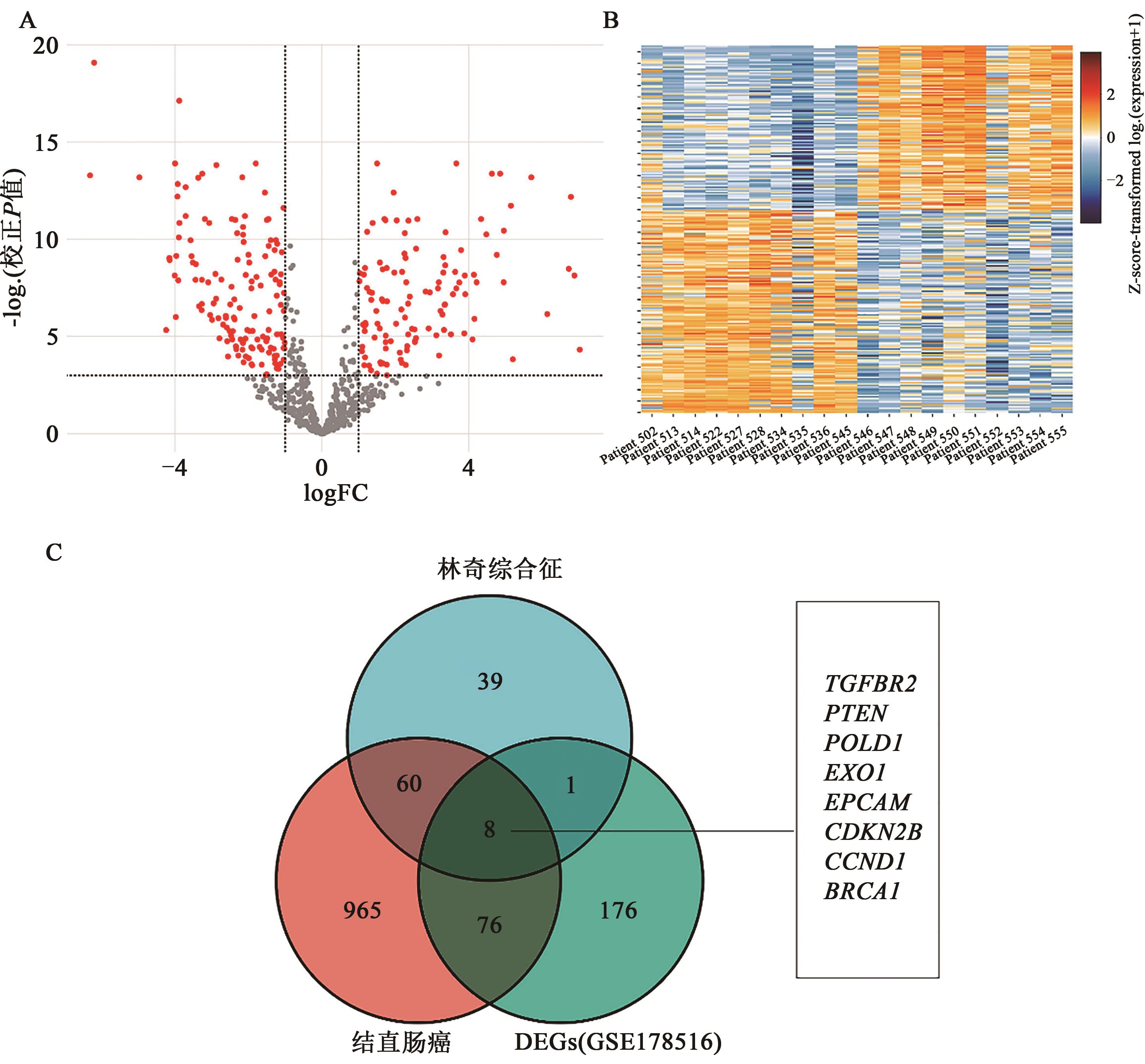

图1 DEGs的筛选A：GSE178516数据集通过GEO2R分析后，以校正P<0.05且绝对值|logFC|≥1为筛选标准构建差异基因火山图；B：林奇综合征相关CRC的癌旁样本和肿瘤样本基因聚类结果显示，两组间存在基因的显著差异表达；C：林奇综合征及结直肠癌疾病基因和GSE178516 DEGs交集的Venn图

Fig. 1 Screening of DEGs

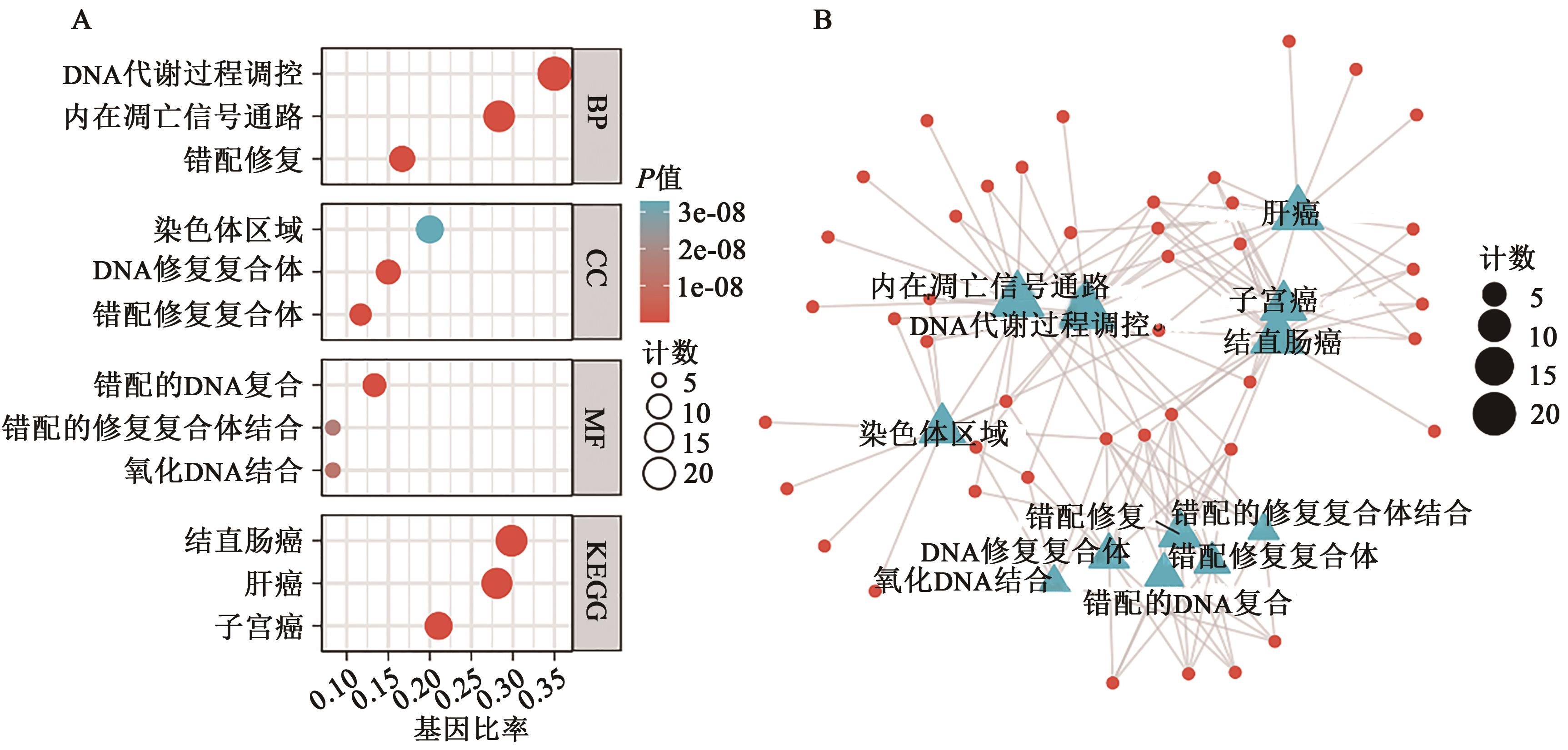

图2 差异基因功能富集分析A：将交集出的69种DEGs进行 GO、KEGG分析，明确DEGs的主要富集通路；B：基于功能富集结果构建GO|KEGG 网络

Fig. 2 Functional enrichment analysis of differential genes

图3 PPI网络构建和模块分析A：通过String数据库构建DEGs的PPI网络；B：通过Cytoscape中的MCODE插件提取PPI网络中最重要的模块

Fig. 3 PPI network construction and module analysis

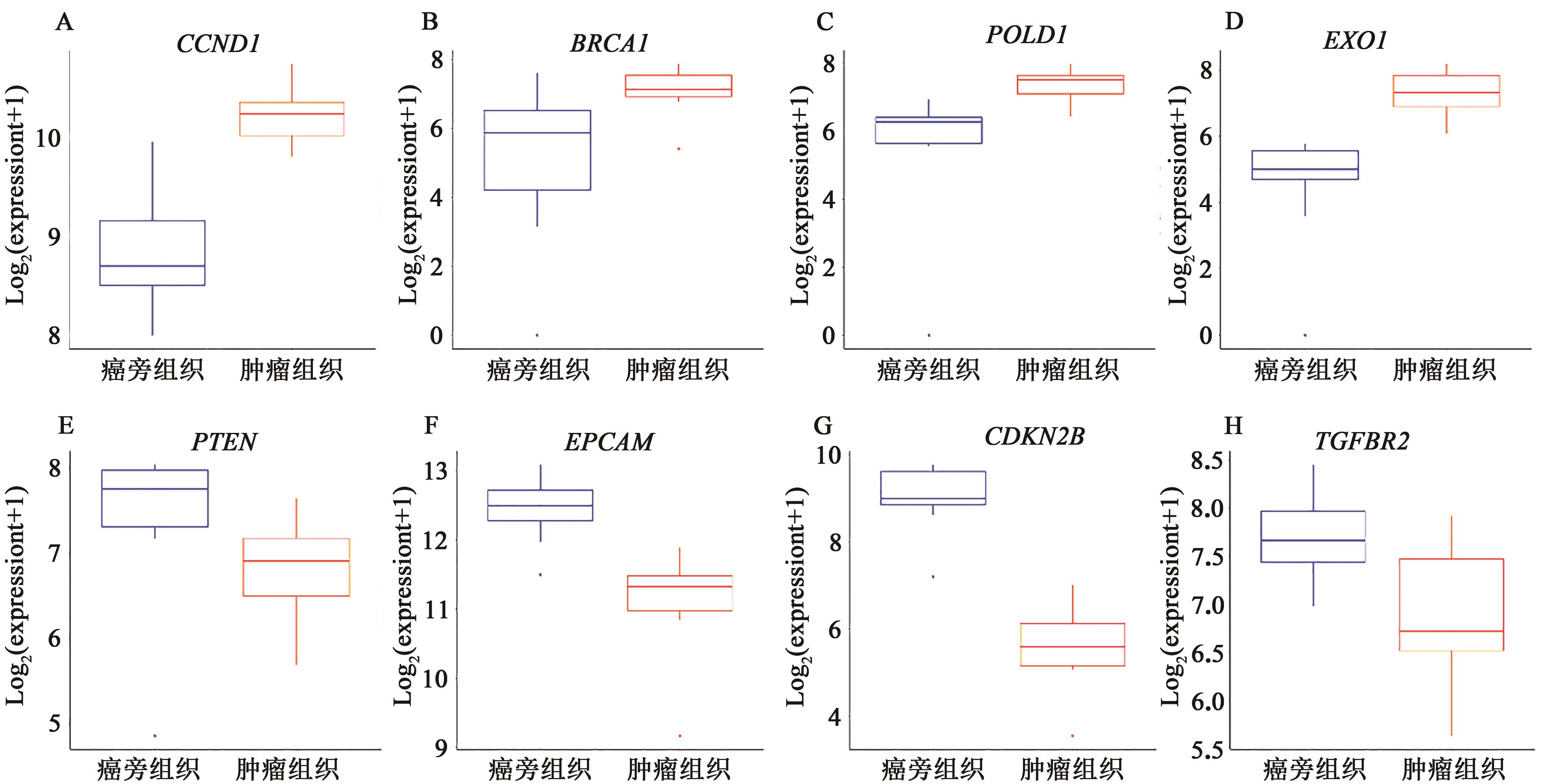

图4 GSE178516数据集中关键Hub基因的表达分析A~D：GSE178516数据集中CCND1、BRCA1、POLD1、EXO1基因在林奇综合征相关CRC的肿瘤组织中高表达；E~H：GSE178516数据集中PTEN、EPCAM、CDKN2B、TGFBR2基因在林奇综合征相关CRC的肿瘤组织中低表达

Fig. 4 Expression analysis of Hub genes in GSE178516

参考文献 33

1	刘仙花, 余英豪, 叶显宗. 林奇综合征临床病理筛查的相关进展[J]. 实用肿瘤杂志, 2018,33(3):277-282.
2	王晓乐, 何淼龙, 宁方玲, 等. 林奇综合征的基因学、诊断及治疗相关进展[J]. 中国医药科学, 2021,11(7):56-59.
3	WATSON P, VASEN H, MECKLIN J P, et al.. The risk of extra-colonic, extra-endometrial cancer in the Lynch syndrome[J]. Int. J. Cancer, 2008,123(2):444-449.
4	谢天赐, 徐向上. 林奇综合征发生发展的研究进展[J]. 现代肿瘤医学, 2022,30(6):1102-1108.
5	MOLLER P, SEPPALA T, BERNSTEIN I, et al.. Cancer incidence and survival in Lynch syndrome patients receiving colonoscopic and gynaecological surveillance: first report from the prospective Lynch syndrome database[J]. Gut, 2017,66(3):464-472.
6	The Cancer Genome Atlas Network.Comprehensive molecular characterization of human colon and rectal cancer[J]. Nature, 2012,487(7407):330-337.
7	SCHWITALLE Y, KLOOR M, EIERMANN S, et al.. Immune response against frameshift-induced neopeptides in HNPCC patients and healthy HNPCC mutation carriers[J]. Gastroenterology, 2008,134(4):988-997.
8	EDGAR R, DOMRACHEV M, LASH A E. Gene expression omnibus: NCBI gene expression and hybridization array data repository[J]. Nucl. Acids Res., 2002,30(1):207-210.
9	ORY L, NAZIH E H, DAOUD S, et al.. Targeting bioactive compounds in natural extracts-development of a comprehensive workflow combining chemical and biological data[J]. Anal. Chim. Acta, 2019,1070:29-42.
10	SZKLARCZYK D, GABLE A L, NASTOU K C, et al.. The STRING database in 2021: customizable protein-protein networks, and functional characterization of user-uploaded gene/measurement sets[J]. Nucl. Acids Res, 2021,49(D1):D605-D612.
11	JANG B S, CHANG J H. Socioeconomic status and survival outcomes in elderly cancer patients: a national health insurance service-elderly sample cohort study[J]. Cancer Med., 2019,8(7):3604-3613.
12	LIU J, ZHOU S, LI S, et al.. Eleven genes associated with progression and prognosis of endometrial cancer (EC) identified by comprehensive bioinformatics analysis[J/OL]. Cancer Cell Int., 2019,19:136[2022-12-25]. .
13	HUANG D W, SHERMAN B T, TAN Q, et al.. The DAVID gene functional classification tool: a novel biological module-centric algorithm to functionally analyze large gene lists[J]. Genome Biol., 2007,8(9):1-16.
14	文家治, 朱腾, 韩春晨, 等. 易感基因在林奇综合征相关结直肠癌、腺瘤筛查中应用研究[J]. 临床军医杂志, 2018,46(8):972-973.
15	许赟, 徐烨. 林奇综合征的病因研究及临床诊治现状[J]. 医学新知杂志, 2019,29(6):585-588.
16	SINICROPE F A. Lynch Syndrome-associated colorectal cancer[J]. N. Engl. J. Med., 2018,379(8):764-773.
17	李小会, 赵文婕, 刘变英. 林奇综合征诊疗进展[J]. 中华结直肠疾病电子杂志, 2016,5(6):512-517.
18	COHEN S A, LEININGER A. The genetic basis of Lynch syndrome and its implications for clinical practice and risk management[J]. Appl. Clin. Genet., 2014,7:147-158.
19	王红格. PARP抑制剂与土木香内酯所致DNA氧化损伤在肿瘤细胞中形成的合成致死作用研究[D]. 吉林:吉林大学, 2020.
20	ALJAŽ G, BRIGITA L, MIHA P. Current view on EpCAM structural biology[J/OL]. Cells, 2020,9(6):1361[2022-12-25]. .
21	丁颖, 王聪, 方海生, 等. EPCAM基因缺失导致的林奇综合征相关卵巢癌一例[J/OL]. 中国临床案例成果数据库, 2022,4(1):E132[2022-12-25]. .
22	HUTH C, KLOOR M, VOIGT A Y, et al.. The molecular basis of EPCAM expression loss in Lynch syndrome-associated tumors[J]. Modern Pathol., 2012,25(6):911-916.
23	BENDRIS N, LEMMERS B, BLANCHARD J M. Cell cycle, cytoskeleton dynamics and beyond: the many functions of cyclins and CDK inhibitors[J]. Cell Cycle, 2015,14(12):1786-1798.
24	MUSGROVE E A, CALDON C E, BARRACLOUGH J, et al.. Cyclin D as a therapeutic target in cancer[J]. Nat. Rev. Cancer, 2011,11(8): 558-572.
25	KRISHNAN R, PATEL P S, HAKEM R. BRCA1 and metastasis: outcome of defective DNA repair[J/OL]. Cancers, 2021,14(1) 108[2022-12-25]..
26	MAGRIN L, FANALE D, BRANDO C, et al.. POLE, POLD1, and NTHL1: the last but not the least hereditary cancer-predisposing genes[J]. Oncogene, 2021,40(40):5893-5901.
27	ORANS J, MCSWEENEY E A, IYER R R, et al.. Structures of human exonuclease 1 DNA complexes suggest a unified mechanism for nuclease family[J]. Cell, 2011,145(2):212-223.
28	SZANKASI P, SMITH G R. A DNA exonuclease induced during meiosis of Schizosaccharomyces pombe [J]. J. Biol. Chem., 1992,267(5):3014-3023.
29	NAGUIB A, BENCZE G, CHO H, et al.. PTEN functions by recruitment to cytoplasmic vesicles[J]. Mol. Cell, 2015,58(2):255-268.
30	HOLLANDER M C, BLUMENTHAL G M, DENNIS P A. PTEN loss in the continuum of common cancers, rare syndromes and mouse models[J]. Nat. Rev. Cancer, 2011,11(4):289-301.
31	SCRUGGS A M, KOH H B, TRIPATHI P, et al.. Loss of CDKN2B promotes fibrosis via increased fibroblast differentiation rather than proliferation[J]. Am. J. Respir Cell Mol. Biol., 2018,59(2):200-214.
32	YANG L, MA D W, CAO Y P, et al.. PRMT5 functionally associates with EZH2 to promote colorectal cancer progression through epigenetically repressing CDKN2B expression[J]. Theranostics, 2021,11(8):3742-3759.
33	YUAN J, YI K, YANG L. TGFBR2 regulates hedgehog pathway and cervical cancer cell proliferation and migration by mediating SMAD4[J]. J. Proteome Res., 2020,19(8):3377-3385.
