功能核酸用于致病菌检测的研究进展

doi:10.19586/j.2095-2341.2022.0089

生物技术进展 ›› 2023, Vol. 13 ›› Issue (1): 30-38.DOI: 10.19586/j.2095-2341.2022.0089

功能核酸用于致病菌检测的研究进展

赵文卓(), 李成勋, 胡作建, 余红秀()

复旦大学生物医学研究院&附属口腔医院，上海 200032

收稿日期:2022-05-26 接受日期:2022-08-18 出版日期:2023-01-25 发布日期:2023-02-07
通讯作者: 余红秀
作者简介:赵文卓 E-mail: 21211510023@m.fudan.edu.cn；
基金资助:
国家重点研发计划项目(2021YFC2701802);上海市口腔医院科技创新人才培养计划(SSH-2022-KJCX-A01)

Research Progress of Functional Nucleic Acid Used in Pathogenic Bacteria Detection

Wenzhuo ZHAO(), Chengxun LI, Zuojian HU, Hongxiu YU()

Institutes of Biomedical Sciences & Shanghai Stomatological Hospital，Fudan University，Shanghai 200032，China

Received:2022-05-26 Accepted:2022-08-18 Online:2023-01-25 Published:2023-02-07
Contact: Hongxiu YU

摘要/Abstract

摘要：

由食源性致病菌引发的疾病对人类健康构成巨大威胁。虽然一些致病菌如金黄色葡萄球菌、大肠杆菌和沙门氏菌等在诊断和预防方面已经取得了重大进展，但开发快速、高效、低成本的检测方法仍然是一项挑战。功能核酸（functional nucleic acids，FNAs）是一类功能超出核酸常规遗传作用的核酸，主要包括天然的核酶（RNAzymes）、核糖开关（riboswitches）以及体外通过指数富集配体系统进化技术（systematic evolution of ligands by exponential enrichment，SELEX）筛选的适配体（aptamers）、核酶（RNAzymes）和脱氧核酶（DNAzymes）。适配体和脱氧核酶因具有较高的稳定性、特异性和可设计性，使其成为病原微生物识别的理想工具，近年来在生物传感和医学诊断领域备受关注。综述了功能核酸的筛选原理和流程、适配体及具有RNA裂解活性的脱氧核酶（RNA cleavage deoxyribozymes，RCDs）在致病菌检测中的应用进展和面临的挑战，并对其未来的发展前景进行了展望。

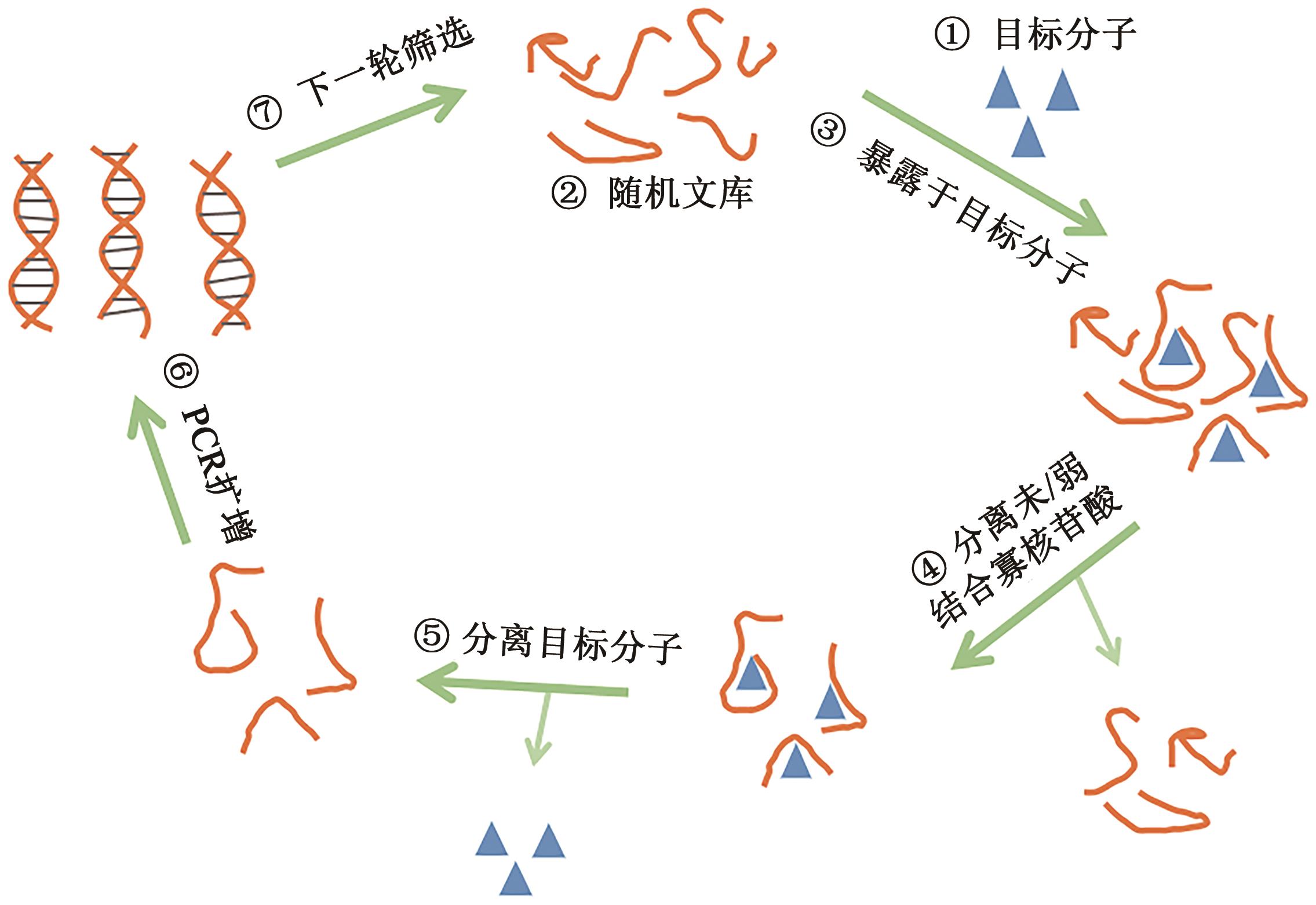

关键词: 功能核酸, SELEX技术, 致病菌, 生物传感器

Abstract:

Diseases caused by food-borne pathogenic bacteria pose a great threat to human health. Although some pathogenic bacteria such as Staphylococcus aureus， Escherichia coli and Salmonella enterica have made great progress in diagnosis and prevention， it is still a challenge to develop fast， efficient and low-cost detection methods. Functional nucleic acids （FNAs） are a kind of nucleic acids with functions beyond the conventional genetic function of nucleic acids， mainly including natural ribozymes， riboswitches， as well as aptamers， RNAzymes and deoxyribozymes screened by exponential enrichment ligand system evolution （SELEX） in vitro. Because of its high stability， specificity and designability， aptamers and DNAzymes have become an ideal tool for identifying pathogenic microorganisms， which has attracted much attention in the fields of biosensing and medical diagnosis in recent years. This paper reviewed the screening principle and process of functional nucleic acids， the application progress and challenges of aptamers and RNA cleavage deoxyribozymes （RCDs） in the detection of pathogenic bacteria， and prospected their future development prospects.

Key words: functional nucleic acids, SELEX technology, pathogenic bacteria, biosensor

中图分类号:

R440

赵文卓, 李成勋, 胡作建, 余红秀. 功能核酸用于致病菌检测的研究进展[J]. 生物技术进展, 2023, 13(1): 30-38.

Wenzhuo ZHAO, Chengxun LI, Zuojian HU, Hongxiu YU. Research Progress of Functional Nucleic Acid Used in Pathogenic Bacteria Detection[J]. Current Biotechnology, 2023, 13(1): 30-38.

图/表 6

参考文献 62

1	白小莲,爱军.生物传感器在食源性致病菌大肠杆菌O157:H7检测中的应用进展[J].生物技术进展,2021,11(3):269-278.
2	WILCOCK A, PUN M, KHANONA J, et al.. Consumer attitudes,knowledge and behaviour: a review of food safety issues[J].Trends Food Sci. Tech., 2004, 15(2): 56-66.
3	常仁亮.制定及应用食品微生物标准的原则CAC/GL21-1997[J]. 现代渔业信息,1999(7):17-19.
4	中华人民共和国食品安全法(节选)[J]. 粮食科技与经济, 2022, 47(S1): 10-15.
5	TAIT E, PERRY J D, STANFORTH S P, et al.. Use of volatile compounds as a diagnostic tool for the detection of pathogenic bacteria[J]. Trac-Trend Anal. Chem., 2014, 53: 117-125.
6	BHARDWAJ N, BHARDWAJ S K, NAYAK M K, et al.. Fluorescent nanobiosensors for the targeted detection of foodborne bacteria[J]. Trac-Trend Anal. Chem., 2017, 97: 120-135.
7	吴一凡,林晟豪,许文涛.小分子靶标的核糖开关生物传感器研究进展[J]. 生物技术进展, 2022, 12(2): 168-175.
8	LI Y， LU Y. Functional nucleic acids for analytical applications[M]. New York: Springer, 2009.
9	许文涛,杨敏,朱龙佼,等.功能核酸概念的内涵与外延[J]. 生物技术进展, 2021, 11(4): 446-454.
10	王琦,颜春蕾,高洪伟,等.基于核酸适配体传感器检测食品致病菌的研究进展[J]. 生物技术通报, 2020, 36(11): 245-258.
11	YOU K M, LEE S H, IM A, et al.. Aptamers as functional nucleic acids: in vitro selection and biotechnological applications[J]. Biotechnol. Bioproc. E., 2003, 8(2): 64-75.
12	MIYAKE Y, TOGASHI H, TASHIRO M, et al.. Mercury(II)-mediated formation of thymine-Hg-II-thymine base pairs in DNA duplexes[J]. J. Am. Chem. Soc., 2006, 128(7): 2172-2173.
13	ELLINGTON A D, SZOSTAK J W. Invitro selection of RNA molecules that bind specific ligands[J]. Nature, 1990, 346(6287): 818-822.
14	TUERK C, GOLD L. Systematic evolution of ligands by exponential enrichment-RNA ligands to bacteriophage-T4 DNA-polymerase[J]. Science, 1990, 249(4968): 505-510.
15	BRUNO J G. In vitro selection of DNA to chloroaromatics using magnetic microbead-based affinity separation and fluorescence detection[J]. Biochem. Bioph. Res. Co., 1997, 234(1): 117-120.
16	MENDONSA S D, BOWSER M T. In vitro evolution of functional DNA using capillary electrophoresis[J]. J. Am. Chem. Soc., 2004, 126(1): 20-21.
17	MENDONSA S D, BOWSER M T. In vitro selection of high-affinity DNA ligands for human IgE using capillary electrophoresis[J]. Anal. Chem., 2004, 76(18): 5387-5392.
18	DANIELS D A, CHEN H, HICKE B J, et al.. A tenascin-C aptamer identified by tumor cell SELEX: systematic evolution of ligands by exponential enrichment[J]. Proc. Natl. Acad. Sci. USA, 2003, 100(26): 15416-15421.
19	BEREZOVSKI M, MUSHEEV M, DRABOVICH A, et al.. Non-SELEX selection of aptamers[J]. J. Am. Chem. Soc., 2006, 128(5): 1410-1411.
20	BEREZOVSKI M V, MUSHEEV M U, DRABOVICH A P, et al.. Non-SELEX: selection of aptamers without intermediate amplification of candidate oligonucleotides[J]. Nat. Protoc., 2006, 1(3): 1359-1369.
21	CHEN Z H, ZENG Z H, WAN Q Y, et al.. Targeted immunotherapy of triple-negative breast cancer by aptamer-engineered NK cells[J/OL]. Biomaterials, 2022, 280:121259[2021-11-15].
22	KEIJZER J F, FIRET J, ALBADA B. Site-selective and inducible acylation of thrombin using aptamer-catalyst conjugates[J]. Chem. Commun., 2021, 57(96): 12960-12963.
23	IKANOVIC M, RUDZINSKI W E, BRUNO J G, et al.. Fluorescence assay based on aptamer-quantum dot binding to Bacillus thuringiensis spores[J]. J. Fluoresc., 2007, 17(2): 193-199.
24	DUAN N, WU S, YU Y, et al.. A dual-color flow cytometry protocol for the simultaneous detection of Vibrio parahaemolyticus and Salmonella typhimurium using aptamer conjugated quantum dots as labels[J]. Anal. Chim. Acta, 2013, 804: 151-158.
25	JIN B, WANG S, LIN M, et al.. Upconversion nanoparticles based FRET aptasensor for rapid and ultrasenstive bacteria detection[J]. Biosens. Bioelectron., 2017, 90: 525-533.
26	WANG R J, XU Y, ZHANG T, et al.. Rapid and sensitive detection of Salmonella typhimurium using aptamer-conjugated carbon dots as fluorescence probe[J]. Anal. Methods, 2015, 7(5): 1701-1706.
27	YOUSEFI H, ALI M M, SU H M, et al.. Sentinel wraps: real-time monitoring of food contamination by printing DNAzyme probes on food packaging[J]. ACS Nano, 2018, 12(4): 3287-3294.
28	ALI M M, SLEPENKIN A, PETERSON E, et al.. A simple DNAzyme-based fluorescent assay for Klebsiella pneumoniae [J]. Chembiochem, 2019, 20(7): 906-910.
29	GU L, YAN W, WU H, et al.. Selection of DNAzymes for sensing aquatic bacteria: Vibrio anguillarum [J]. Anal. Chem., 2019, 91(12): 7887-7893.
30	CHANG T, WANG L, ZHAO K, et al.. Duplex identification of Staphylococcus aureus by aptamer and gold nanoparticles[J]. J. Nanosci. Nanotechnol., 2016, 16(6): 5513-5519.
31	KIM H S, KIM Y J, CHON J W, et al.. Two-stage label-free aptasensing platform for rapid detection of Cronobacter sakazakii in powdered infant formula[J]. Sensor. Actuat. B-Chem., 2017, 239: 94-99.
32	ALI M M, WOLFE M, TRAM K, et al.. ADNAzyme-based colorimetric paper sensor for Helicobacter pylori [J]. Angew. Chem. Int. Edit., 2019, 58(29): 9907-9911.
33	ALI M M, SILVA R, WHITE D, et al.. A lateral flow test for Staphylococcus aureus in nasal mucus using a new DNAzyme as the recognition element[J/OL]. Angew. Chem. Int. Ed. Engl., 2022, 61(3): e202112346[2021-11-23]. .
34	LIAN Y, HE F, WANG H, et al.. A new aptamer/graphene interdigitated gold electrode piezoelectric sensor for rapid and specific detection of Staphylococcus aureus [J]. Biosens. Bioelectron., 2015, 65: 314-319.
35	NGUYEN T T, KIM E R, GU M B. A new cognate aptamer pair-based sandwich-type electrochemical biosensor for sensitive detection of Staphylococcus aureus [J/OL]. Biosens. Bioelectron., 2022, 198: 113835[2021-11-24]. .
36	PANDEY R, CHANG D R, SMIEJA M, et al.. Integrating programmable DNAzymes with electrical readout for rapid and culture-free bacterial detection using a handheld platform[J]. Nat. Chem., 2021, 13(9): 895-901.
37	LIU J, CAO Z, LU Y. Functional nucleic acid sensors[J]. Chem.Rev., 2009, 109(5): 1948-1998.
38	BREAKER R R, JOYCE G F. A DNA enzyme that cleaves RNA[J]. Chemi. Biol., 1994, 1(4): 223-229.
39	KIM K S, HCHOI W, GONG S J, et al. Efficient target site selection for an RNA-cleaving DNAzyme through combinatorial library screening[J]. B. Korean Chem. Soc., 2006, 27(5): 657-662.
40	SHEN Z, WU Z, CHANG D, et al.. A catalytic DNA activated by a specific strain of bacterial pathogen[J]. Angew. Chem. Int. Edit., 2016, 55(7): 2431-2434.
41	ZHANG W, FENG Q, CHANG D, et al.. In vitro selection of RNA-cleaving DNAzymes for bacterial detection[J]. Methods, 2016, 106: 66-75.
42	GU L, YAN W, WU H, et al.. Selection of DNAzymes for sensing aquatic bacteria: vibrio anguillarum[J]. Anal. Chem., 2019, 91(12): 7887-7893.
43	SHANGGUAN J F, LI Y H, HE D G, et al.. A combination of positive dielectrophoresis driven on-line enrichment and aptamer-fluorescent silica nanoparticle label for rapid and sensitive detection of Staphylococcus aureus [J]. Analyst, 2015, 140(13): 4489-4497.
44	WANG Q Y, KANG Y J. Bioprobes based on aptamer and silica fluorescent nanoparticles for bacteria Salmonella typhimurium detection[J]. Nanoscale Res. Lett., 2016, 11(1): 1-9.
45	DUAN N, WU S J, ZHU C Q, et al.. Dual-color upconversion fluorescence and aptamer-functionalized magnetic nanoparticles-based bioassay for the simultaneous detection of Salmonella typhimurium and Staphylococcus aureus [J]. Anal. Chim. Acta, 2012, 723: 1-6.
46	WU S J, DUAN N, SHI Z, et al.. Simultaneous aptasensor for multiplex pathogenic bacteria detection based on multicolor upconversion nanoparticles labels[J]. Anal. Chem., 2014, 86(6): 3100-3107.
47	KURT H, YUCE M, HUSSAIN B, et al.. Dual-excitation upconverting nanoparticle and quantum dot aptasensor for multiplexed food pathogen detection[J]. Biosens. Bioelectron., 2016, 81: 280-286.
48	QIAN Z S, SHAN X Y, CHAI L J, et al.. A universal fluorescence sensing strategy based on biocompatible graphene quantum dots and graphene oxide for the detection of DNA[J]. Nanoscale, 2014, 6(11): 5671-5674.
49	ZHANG C, LAI C, ZENG G M, et al.. Nanoporous Au-based chronocoulometric aptasensor for amplified detection of Pb²⁺ using DNAzyme modified with Au nanoparticles[J]. Biosens. Bioelectron., 2016, 81: 61-67.
50	LIU D B, WANG Z, JIANG X Y. Gold nanoparticles for the colorimetric and fluorescent detection of ions and small organic molecules[J]. Nanoscale, 2011, 3(4): 1421-1433.
51	CHAN W C W, NIE S M. Quantum dot bioconjugates for ultrasensitive nonisotopic detection[J]. Science, 1998, 281(5385): 2016-2018.
52	BILAN R, FLEURY F, NABIEY I, et al.. Quantum dot surface chemistry and functionalization for cell targeting and imaging[J]. Bioconjugate Chem., 2015, 26(4): 609-624.
53	NANDI S, RITENBERG M, JELINEK R. Bacterial detection with amphiphilic carbon dots[J]. Analyst, 2015, 140(12): 4232-4237.
54	ALI M M, AGUIRRE S D, LAZIM H, et al.. Fluorogenic DNAzyme probes as bacterial indicators[J]. Angew. Chem. Int. Edit., 2011, 50(16): 3751-3754.
55	MEI S H J, LIU Z J, BRENNAN J D, et al.. An efficient RNA-cleaving DNA enzyme that synchronizes catalysis with fluorescence signaling[J]. J. Am. Chem. Soc., 2003, 125(2): 412-420.
56	LIU Z J, MEI S H J, BRENNAN J D, et al.. Assemblage of signaling DNA enzymes with intriguing metal-ion specificities and pH dependences[J]. J. Am. Chem. Soc., 2003, 125(25): 7539-7545.
57	ALI M M, AGUIRRE S D, LAZIM H, et al.. Fluorogenic DNAzyme probes as bacterial indicators[J]. Angew. Chem. Int. Ed. Engl., 2011, 50(16): 3751-3754.
58	ZHU D, LIU B, WEI G. Two-dimensional material-based colorimetric biosensors: a review[J]. Biosensors-Basel, 2021, 11(8): 259.
59	VERMA M S, ROGOWSKI J L, JONES L, et al.. Colorimetric biosensing of pathogens using gold nanoparticles[J]. Biotechnol. Adv., 2015, 33(6): 666-680.
60	LI X M, JU H Q, DING C F, et al.. Nucleic acid biosensor for detection of hepatitis B virus using 2,9-dimethyl-1,10-phenanthroline copper complex as electrochemical indicator[J]. Anal. Chim. Acta, 2007, 582(1): 158-163.
61	WANG C F, SUN X Y, SU M, et al.. Electrochemical biosensors based on antibody, nucleic acid and enzyme functionalized graphene for the detection of disease-related biomolecules[J]. Analyst, 2020, 145(5): 1550-1562.
62	张爱萍,唐佳妮,孟瑞锋, 等.电化学法快速检测微生物的发展现状及趋势[J]. 生物技术进展, 2011, 1(5): 342-346.

检测方法	适用场所	优缺点	检测对象	检测元件	检测限/（CFU·mL^-1）	参考文献
荧光法	实验室、机构检测	检出限较低，但需要相关仪器设备，成本高	苏云金芽孢杆菌（Bacillus thuringiensis）	适配体	10³	[23]
			副溶血弧菌和鼠伤寒沙门氏菌（Vibrio parahaemolyticus and Salmonella typhimurium）	适配体	5×10³	[24]
			大肠杆菌ATCC 8739（Escherichia coli）	适配体	3	[25]
			鼠伤寒沙门氏菌（Salmonella typhimurium）	适配体	50	[26]
			大肠杆菌（Escherichia coli）	RCDs	10³	[27]
			肺炎克雷伯菌（Klebsiella Pneumoniae）	RCDs	10⁵	[28]
			鳗弧菌（Vibrio anguillarum）	RCDs	4×10³	[29]

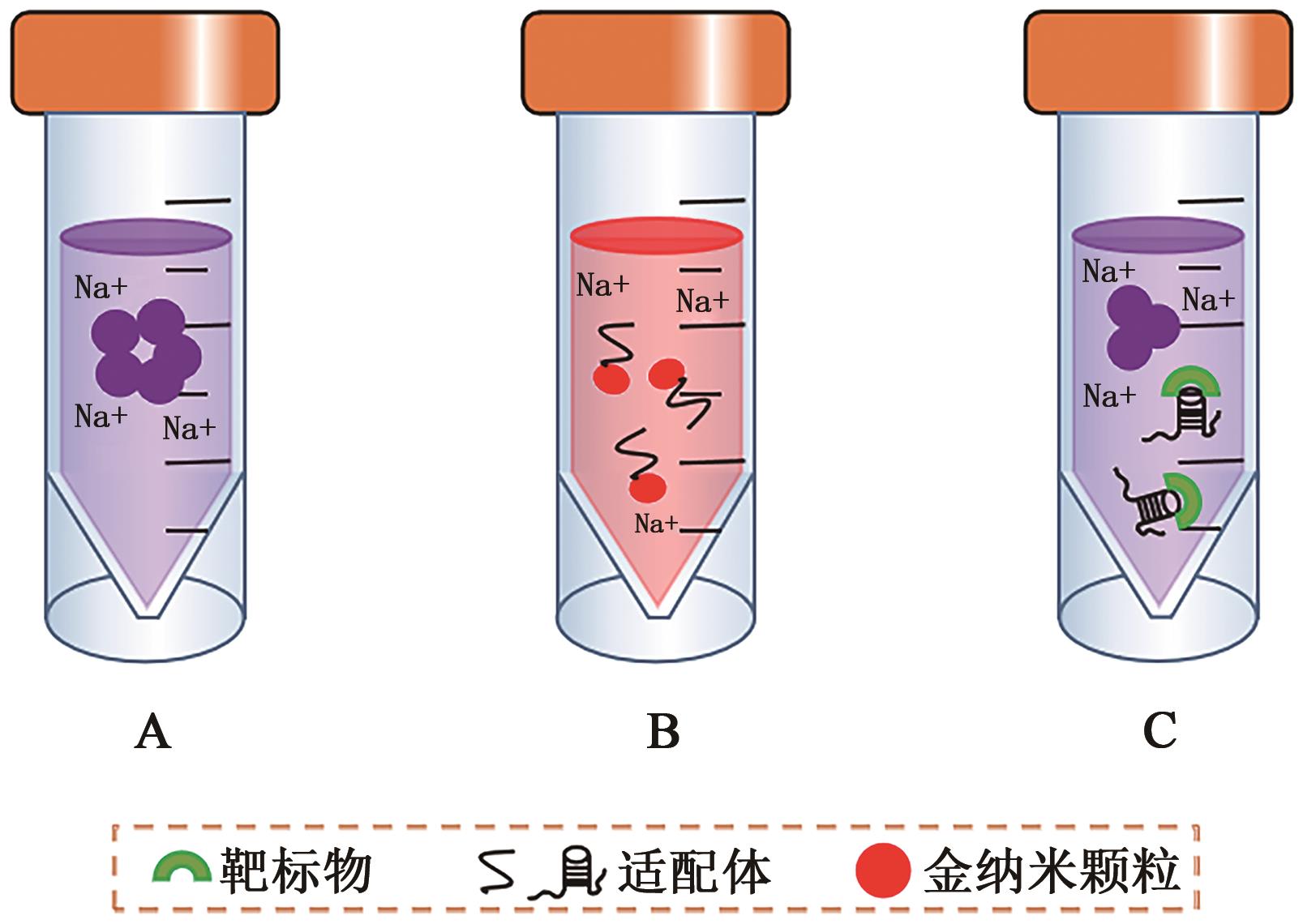

比色法	现场检测、实验室、机构检测	直观快速，不需要仪器支撑，成本低，但结果不易量化	金黄色葡萄球菌（Staphylococcus aureus）	适配体	10⁸	[30]
			阪崎肠杆菌（Cronobacter sakazakii）	适配体	7.1×10³	[31]
			幽门螺旋杆菌（Helicobacter pylori）	RCDs	10⁴	[32]
			金黄色葡萄球菌（Staphylococcus aureus）	RCDs	10⁵	[33]

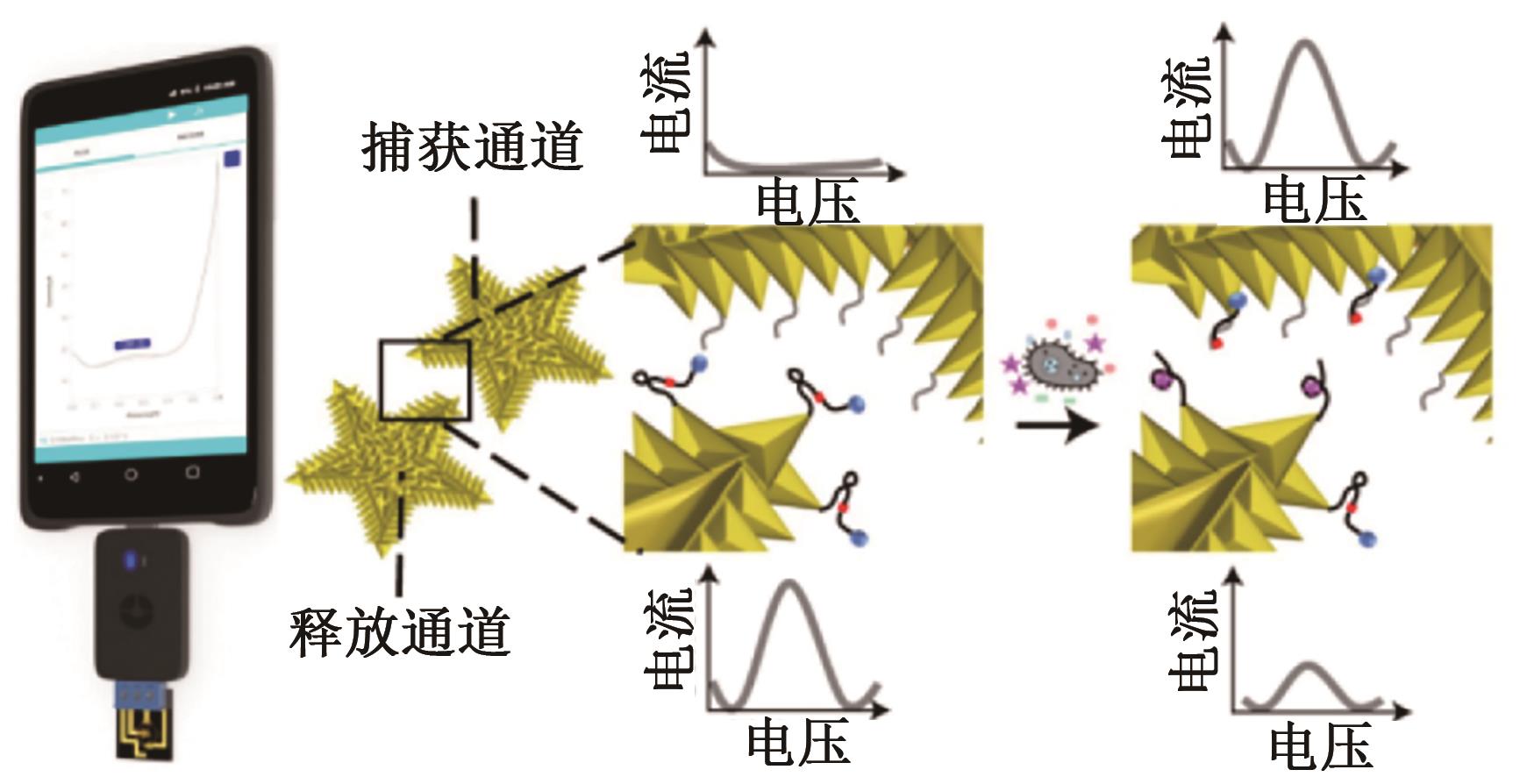

电化学法	现场检测、实验室、机构检测	灵敏度高，结果直观，但需要相关电子设备，成本较高	金黄色葡萄球菌（Staphylococcus aureus）	适配体	41	[34]
			金黄色葡萄球菌（Staphylococcus aureus）	适配体	39（缓冲液） 414（自来水）	[35]
			大肠杆菌（Escherichia coli）	RCDs	10³	[36]

检测方法	适用场所	优缺点	检测对象	检测元件	检测限/（CFU·mL^-1）	参考文献
荧光法	实验室、机构检测	检出限较低，但需要相关仪器设备，成本高	苏云金芽孢杆菌（Bacillus thuringiensis）	适配体	10³	[23]
			副溶血弧菌和鼠伤寒沙门氏菌（Vibrio parahaemolyticus and Salmonella typhimurium）	适配体	5×10³	[24]
			大肠杆菌ATCC 8739（Escherichia coli）	适配体	3	[25]
			鼠伤寒沙门氏菌（Salmonella typhimurium）	适配体	50	[26]
			大肠杆菌（Escherichia coli）	RCDs	10³	[27]
			肺炎克雷伯菌（Klebsiella Pneumoniae）	RCDs	10⁵	[28]
			鳗弧菌（Vibrio anguillarum）	RCDs	4×10³	[29]
比色法	现场检测、实验室、机构检测	直观快速，不需要仪器支撑，成本低，但结果不易量化	金黄色葡萄球菌（Staphylococcus aureus）	适配体	10⁸	[30]
			阪崎肠杆菌（Cronobacter sakazakii）	适配体	7.1×10³	[31]
			幽门螺旋杆菌（Helicobacter pylori）	RCDs	10⁴	[32]
			金黄色葡萄球菌（Staphylococcus aureus）	RCDs	10⁵	[33]
电化学法	现场检测、实验室、机构检测	灵敏度高，结果直观，但需要相关电子设备，成本较高	金黄色葡萄球菌（Staphylococcus aureus）	适配体	41	[34]
			金黄色葡萄球菌（Staphylococcus aureus）	适配体	39（缓冲液） 414（自来水）	[35]
			大肠杆菌（Escherichia coli）	RCDs	10³	[36]
