急性髓系白血病mRNA与非编码RNA差异表达谱及CeRNA调控网络分析

doi:10.19586/j.2095-2341.2022.0063

生物技术进展 ›› 2023, Vol. 13 ›› Issue (1): 146-153.DOI: 10.19586/j.2095-2341.2022.0063

• 研究论文 • 上一篇

急性髓系白血病mRNA与非编码RNA差异表达谱及CeRNA调控网络分析

张月明¹(), 罗雅琴², 郑伟², 徐杰², 董雪燕², 李善琛¹, 王敬毅²()

^1.山东中医药大学，济南 250000
^2.山东中医药大学附属医院，济南 250000

收稿日期:2022-04-27 接受日期:2022-05-30 出版日期:2023-01-25 发布日期:2023-02-07
通讯作者: 王敬毅
作者简介:张月明E-mail： 761713254@qq.com；
基金资助:
国家自然科学基金青年科学基金项目(82104609)

Differential Expression Profiles of mRNA and Non-coding RNA and CeRNA Regulatory Network Analysis of Acute Myeloid Leukemia

Yueming ZHANG¹(), Yaqin LUO², Wei ZHENG², Jie XU², Xueyan DONG², Shanchen LI¹, Jingyi WANG²()

^1.Shandong University of Traditional Chinese Medicine，Jinan 250000，China
^2.The First Affiliated Hospital of Shandong University of Chinese Medicine，Jinan 250000，China

Received:2022-04-27 Accepted:2022-05-30 Online:2023-01-25 Published:2023-02-07
Contact: Jingyi WANG

摘要/Abstract

摘要：

利用GEO数据库(gene expression omnibus database)通过生物信息学分析方法探讨急性髓系白血病(acute myelogenous leukemia，AML)的发病机制。检索GEO数据库中AML相关芯片数据集GSE142698、GSE142699和GSE96535。利用GEO2R分析得到差异mRNAs、miRNAs以及差异lncRNAs。利用在线生物信息学分析工具DAVID对差异mRNAs进行GO富集分析和KEGG通路分析。利用miRWalk数据库预测AML相关miRNAs的靶向mRNAs，利用Spongescan数据库预测AML相关miRNAs的靶向lncRNAs，构建lncRNA-miRNA-mRNA竞争性内源RNA （competing endogenous RNA,ceRNA）调控网络。共筛选出29个显著差异mRNAs、70个显著差异miRNAs和20 005个显著差异lncRNAs。GO富集分析和KEGG通路分析显示，差异表达基因主要涉及蛋白磷酸化、细胞分裂、细胞增殖的负调控、基因表达的正向调节、周期蛋白依赖的丝氨酸/苏氨酸激酶活性的调节等生物过程以及细胞周期、细胞衰老、癌症通路、PI3K-Akt通路等信号通路。将miRWalk数据库预测的靶向mRNAs与差异mRNAs取交集，Spongescan数据库预测的靶向lncRNAs与差异lncRNAs取交集，分别确定了25个mRNAs、6个lncRNAs参与AML相关ceRNA调控网络的构建。结果表明，lncRNAs可能作为关键的ceRNA，通过调控miRNA和相关靶基因参与AML的发生与发展，研究结果为AML诊断和治疗的分子生物学研究提供了新的依据。

关键词: 急性髓系白血病, 非编码RNA, 竞争性内源RNA网络

Abstract:

The pathogenesis of acute myeloid leukemia （AML） was investigated by GEO database and bioinformatics analysis. AML related chip datasets GSE142698， GSE142699 and GSE96535 were retrieved from GEO database. Differential mRNAs， miRNAs and lncRNAs were obtained by GEO2R analysis. GO enrichment analysis and KEGG pathway analysis were performed for differential mRNAs using online bioinformatics analysis tool DAVID. The targeted mRNAs of AML related miRNAs were predicted by miRWalk database， and the targeted lncRNAs of AML related miRNAs were predicted by Spongescan database， and the lncRNa-miRNA-mRNA competing endogenous RNA （ceRNA） regulatory network was constructed. A total of 29 mRNAs， 70 miRNAs and 20 005 lncRNAs with significant differences were screened. GO enrichment and KEGG pathway analysis in differentially expressed genes mainly related to protein phosphorylation， cell division， negative regulation of cell proliferation， protein positive regulation of gene expression， cycle depends on serine/threonine kinase activity such as biological processes and the regulation of cell cycle， cell aging and cancer pathways， PI3K-Akt signaling pathways and other signaling pathways. The intersection of targeted mRNAs and differential mRNAs predicted by miRWalk database and targeted lncRNAs predicted by Spongescan database was selected. 25 mRNAs and 6 lncRNAs were identified to participate in the construction of AML related ceRNA regulatory networks. LncRNAs may be the key ceRNAS involved in the occurrence and development of AML by regulating miRNAs and related target genes， which may provide a new basis for molecular biological studies on the diagnosis and treatment of AML.

Key words: acute myeloid leukemia, non-coding RNA, competitive endogenous RNA networks

中图分类号:

R733

张月明, 罗雅琴, 郑伟, 徐杰, 董雪燕, 李善琛, 王敬毅. 急性髓系白血病mRNA与非编码RNA差异表达谱及CeRNA调控网络分析[J]. 生物技术进展, 2023, 13(1): 146-153.

Yueming ZHANG, Yaqin LUO, Wei ZHENG, Jie XU, Xueyan DONG, Shanchen LI, Jingyi WANG. Differential Expression Profiles of mRNA and Non-coding RNA and CeRNA Regulatory Network Analysis of Acute Myeloid Leukemia[J]. Current Biotechnology, 2023, 13(1): 146-153.

图/表 7

图1 本研究流程图

Fig. 1 Flow chart of this study

图2 mRNAs、miRNAs及lncRNAs分布情况的火山图A: 数据集GSE142698 mRNA的差异表达情况；B：数据集GSE142699 miRNA的差异表达情况；C: 数据集GSE96535 lncRNAs的差异表达情况

Fig. 2 Volcano map of distribution of mRNAs, miRNA and lncRNAs

图3 差异表达倍数绝对值前30的RNA热图A 数据集GSE142698 mRNAs热图；B 数据集GSE142699 miRNAs热图；C 数据集GSE96535 lncRNAs热图

Fig. 3 Heat map of Top30 absolute value differential expression multiple

图4 DEmRNA基因功能注释气泡图A：DEmRNA代谢途径富集气泡图；B：DEmRNA细胞成分富集气泡图；C：DEmRNA生物过程富集气泡图；D：DEmRNA分子功能富集气泡图

Fig. 4 Bubble diagram of DEmRNA gene function annotation

图5 蛋白互作网络图注：红色为上调蛋白靶基因，蓝色为下调蛋白靶基因，颜色越深，上调或下调的倍数越大。

Fig. 5 PPI net work

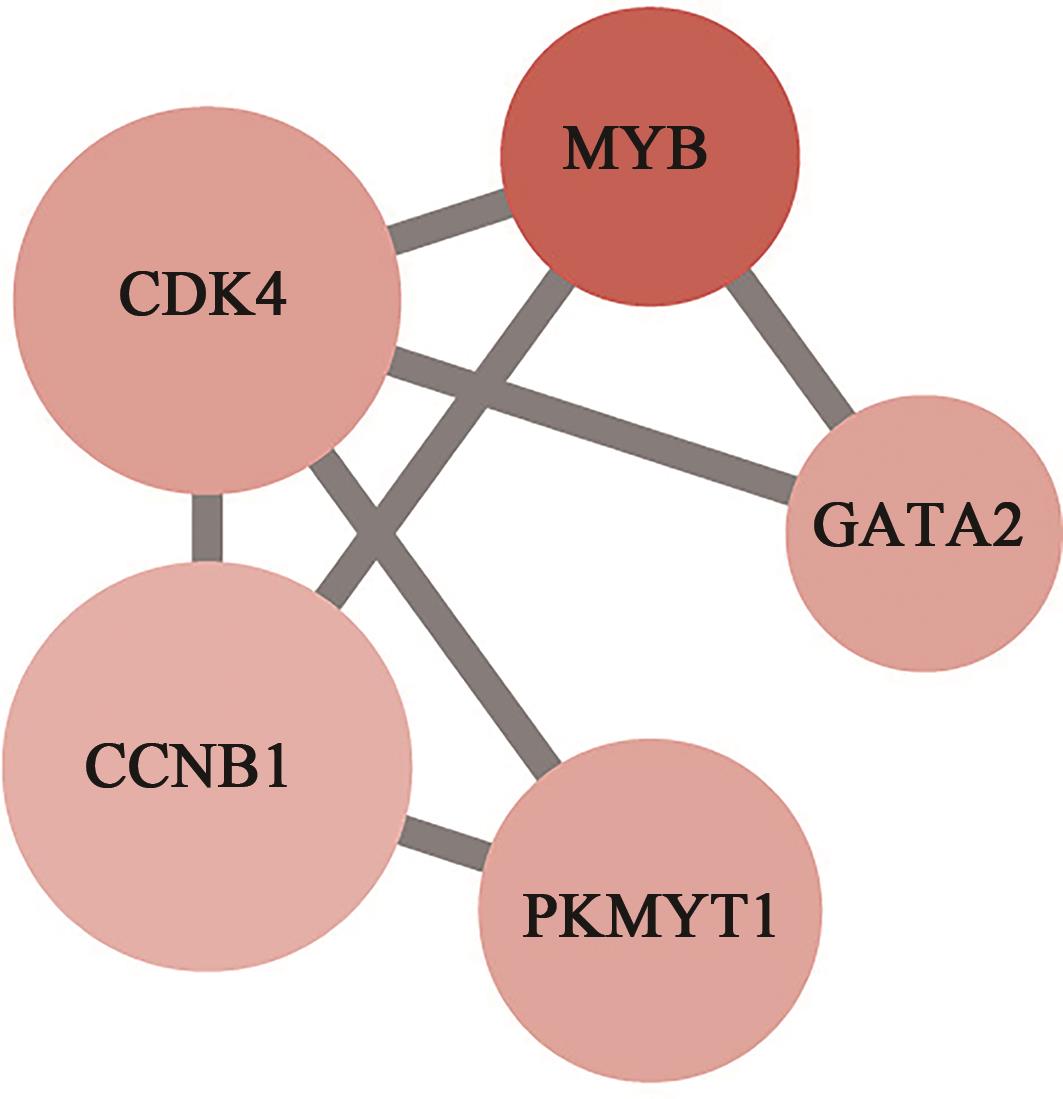

图6 PPI互作网络筛选出的核心基因

Fig. 6 Hub gene screened from PPI net work

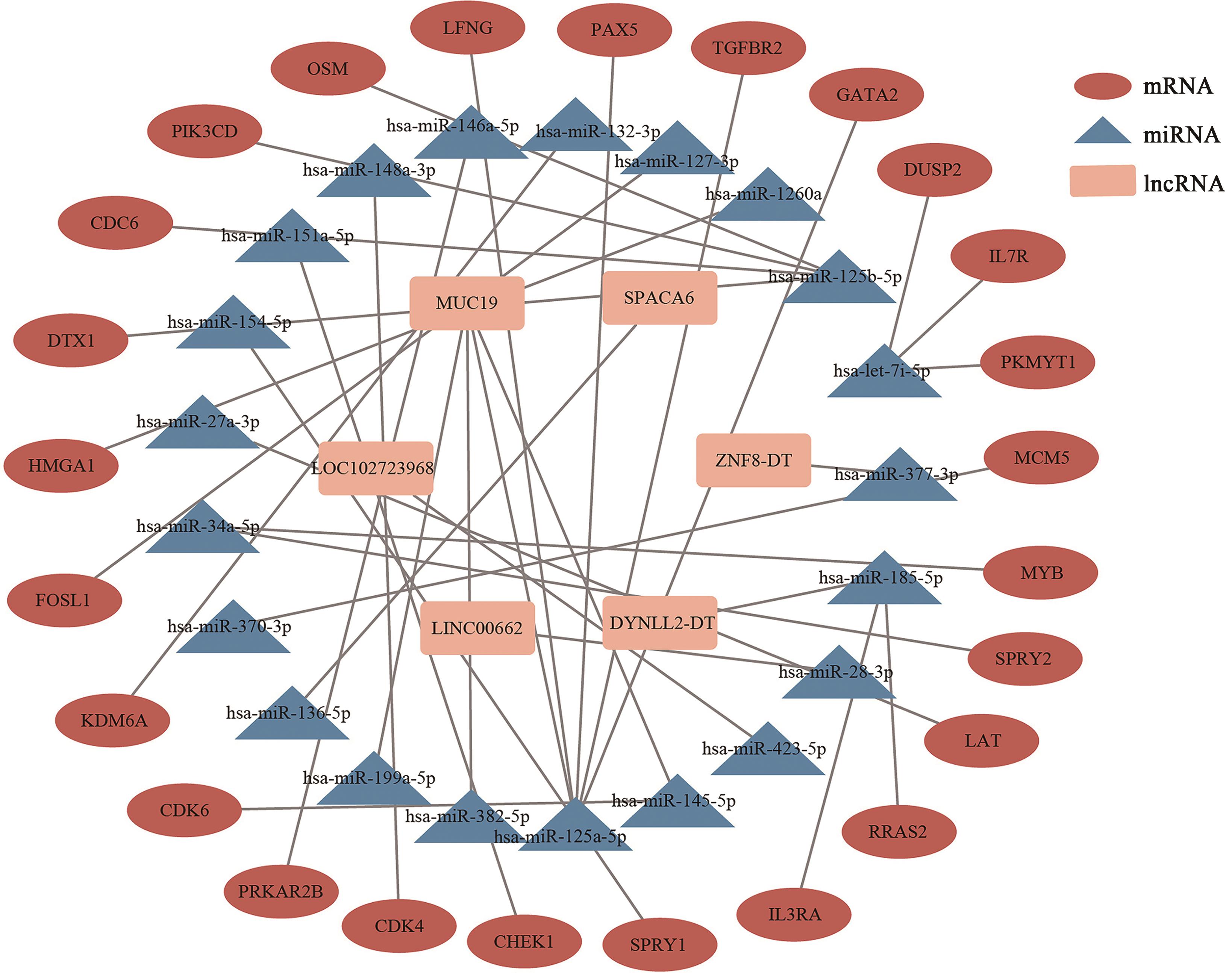

图7 竞争性内源RNA网络图

Fig. 7 Competitive endogenous RNA networks

参考文献 27

1	陈熙勐,张皓旻,杨波,等.急性髓系白血病患者预后不良相关基因的多组学分析[J].中国实验血液学杂志,2019,27(2):331-338.
2	伍振辉,张欢,吴欣平,等. 基于网络药理学及体外实验探讨青黄散抗急性髓系白血病的分子机制[J]. 中国实验方剂学杂志,2022,28(7):179-189.
3	POLISENO L, SALMENA L, ZHANG J, et al.. A coding-independent function of gene and pseudogene mRNAs regulates tumour biology[J]. Nature,2010,65(1):1033-1038.
4	雍嘉欣,韦权峰,刘尚辉.基于TCGA和GEO数据库的胃癌lncRNA筛选与ceRNA网络构建[J].生物技术进展,2022,12(1):149-157.
5	HUANG D W, SHERMAN B T, LEMPICKI R A. Bioinformatics enrichment tools: paths toward the comprehensive functional analysis of large gene lists[J]. Nucl. Acids Res.,2009,37(1):1-13.
6	刘蓓.急性髓系白血病的免疫治疗现状[J].兰州大学学报(医学版),2021,47(6):1-9.
7	董谦,龚娜英,陈康,等.急性髓系白血病潜在关键基因表达谱的生物信息学分析[J].检验医学与临床,2021,18(13):1828-1832.
8	ARMENTEROS-MONTERROSO E, ZHAO L, GASPAROLI L, et al.. The AAA+ATPase RUVBL2 is essential for the oncogenic function of c-MYB in acute myeloid leukemia[J]. Leukemia, 2019,33(12):2817-2829.
9	HIRABAYASHI S, WLODARSKI M W, KOZYRA E, et al.. Heterogeneity of GATA2-related myeloid neoplasms[J]. Int. J. Hematol. ,2017,106(2):175-182.
10	程凯.人白血病细胞中c-myb的远距离表达调控机制研究[D].上海:上海海洋大学, 2020.
11	尤文挺,何龙,王洒.肝细胞癌相关差异基因及关键途径的生物信息学分析[J].中西医结合肝病杂志,2021,31(11):1022-1027.
12	李莉,熊国平,颜琳,等.CCNB1在卵巢癌中的表达及意义[J].现代妇产科进展,2016,25(11):818-820+824.
13	崔宇平,马洪,段晓峰,等.CCNB1基因在口腔鳞状细胞癌中的表达及意义[J].实用口腔医学杂志,2019,35(3):395-397.
14	金鹏,冯虎,刘倩倩,等.早期非小细胞肺癌高复发风险相关基因的生物信息学分析[J].中国生物制品学杂志,2018,31(1):35-40.
15	TOLEDO C M, DING Y, HOELLERBAUER P, et al.. Genome-wide CRISPR-Cas9 screens reveal loss of redundancy between PKMYT1 and WEE1 in glioblastoma stem-like cells[J]. Cell Rep., 2015,13(11):2425-2439.
16	LIU L, WU J, WANG S, et al.. PKMYT1 promoted the growth and motility of hepatocellular carcinoma cells by activating beta-catenin/ TCF signaling[J]. Exp. Cell Res., 2017,358(2):209-216.
17	JEONG D, KIM H, KIM D, et al.. Protein kinase, membrane associated tyrosine/threonine 1 is associated with the progression of colorectal cancer[J]. Oncol. Rep., 2018,39(6):2829-2836.
18	WANG X M, LI Q Y, REN L L, et al.. Effects of MCRS1 on proliferation, migration, invasion, and epithelial mesenchymal transition of gastric cancer cells by interacting with Pkmyt1 protein kinase[J]. Cell Signal., 2019,59:171-181.
19	王莉,董陆佳,刘广贤,等. GATA2在白血病患者中的表达及其意义[J].中华血液学杂志,2001(1):26-28.
20	SANTO L, SIU K T, RAJE N. Targeting cyclin-dependent kinasesand cell cycle progression in human cancers[J]. Semin Oncol., 2015,42(6):788-800.
21	LI Q, WANG S G, WU Z Y,et al.. DDX11-AS1 exacerbates bladder cancer progression by enhancing CDK6 expression via suppressing miR-499b-5p[J]. Biomed. Pharm.,2020,127(C):110-164.
22	HE Z Y, DANG J, SONG A L,et al.. NEAT1 promotes colon cancer progression through sponging miR-495-3p and activating CDK6 in vitro and in vivo[J]. J. RNA Cell. Physiol.,2019,234(11): 19582-19591.
23	DALL' A A, SONEGO M, PELLIZZARI I, et al.. CDK6 protects epithelial ovarian cancer from platinum-induced death via FOXO3 regulation[J]. EMBO Mol. Med.,2017,9(10) :1415-1433.
24	AGGER K, MIYAGI S, PEDERSEN M T, et al.. Jmjd2/Kdm4 demethylases are required for expression of Il3ra and survival of acute myeloid leukemia cells[J]. Genes Dev., 2016,30(11):1278-1288.
25	TESTA U, PELOSI E, FRANKEL A. CD 123 is a membrane biomarker and a therapeutic target in hematologic malignancies[J/OL]. Biomark Res., 2014,2(1):4[2022-4-20]. .
26	TESTA U, RICCIONI R, MILITI S, et al.. Elevated expression of IL-3Ralpha in acute myelogenous leukemia is associated with enhanced blast proliferation, increased cellularity, and poor prognosis[J]. Blood, 2002,100(8):2980-2988.
27	BROUGHTON S E, DHAGAT U, HERCUS T R, et al.. The GM-CSF/IL-3/IL-5 cytokine receptor family: from ligand recognition to initiation of signaling[J]. Immunol. Rev., 2012,250(1):277-302.
