尿苷二磷酸糖固定化酶合成法研究

doi:10.19586/j.2095-2341.2021.0146

生物技术进展 ›› 2022, Vol. 12 ›› Issue (2): 270-280.DOI: 10.19586/j.2095-2341.2021.0146

尿苷二磷酸糖固定化酶合成法研究

吕海超(), 贾哲康, 张文, 蒋丽雯, 晁玉文, 窦文芳()

江南大学药学院，江苏无锡 214122

收稿日期:2021-08-28 接受日期:2021-10-28 出版日期:2022-03-25 发布日期:2022-03-25
通讯作者: 窦文芳
作者简介:吕海超 E-mail：335162058@qq.com；

Study on Uridine Diphosphate Sugar Synthesis by Immobilized Enzyme

Haichao LYU(), Zhekang JIA, Wen ZHANG, Liwen JIANG, Yuwen CHAO, Wenfang DOU()

School of Pharmaceutical Sciences，Jiangnan University，Jiangsu Wuxi 214122，China

Received:2021-08-28 Accepted:2021-10-28 Online:2022-03-25 Published:2022-03-25
Contact: Wenfang DOU

摘要/Abstract

摘要：

利用生物酶进行体外催化反应合成不同种类的尿苷二磷酸糖（uridine diphosphate sugar，UDP-糖），生物酶的重复利用率较低。为提高尿苷二磷酸糖的合成效率及增加产物种类，以镍螯合聚丙烯酸酯树脂为载体，对带有HIS标签的N-乙酰己糖胺激酶（N-acetylhexosamine kinase，NahK）和尿苷转移酶（uridine transferase，GlmU）进行固定化。以固定化NahK和固定化GlmU为催化酶，不同单糖作为底物，研究尿苷二磷酸糖的一锅法合成情况。利用Q柱对产物进行纯化，通过高效液相色谱法、质谱法、核磁共振氢谱法对反应产物进行检测。确定了镍螯合聚丙烯酸酯树脂对游离NahK和GlmU的实际载量分别为10和20 mg·g^-1。固定化酶量的最优配比为5.5 g固定化NahK和2.5 g固定化GlmU。固定化酶的最适pH和温度分别为8.0和35℃，且能在重复反应中稳定反应5个批次。葡萄糖、N-乙酰氨基葡萄糖和甘露糖可以参与一锅法反应，生成UDP-糖的相对分子质量分别为566、607、566，而葡萄糖醛酸、半乳糖和果糖在该体系下不能合成相应的UDP-糖。基于固定化酶技术，一锅法可合成UDP-葡萄糖、UDP-N-乙酰氨基葡萄糖、UDP-甘露糖。

关键词: UDP-糖固定化酶, 一锅法, UDP-葡萄糖, UDP-N-乙酰氨基葡萄糖, UDP-甘露糖

Abstract:

Using biological enzymes to synthesize more kinds of uridine diphosphate sugars（UDP sugars）， the reuse rate of biological enzymes is low. In order to synthesize more kinds of UDP sugars with high effciency， N-acetylhexosamine kinase （NahK） and uridine transferase （GlmU） with HIS tag were immobilized on nickel chelated polyacrylate resin. Using immobilized NahK and immobilized GlmU as catalytic enzymes and different monosaccharides as substrates， the one pot method synthesis of uridine diphosphate sugar was studied. The product was purified by Q sepharose. The reaction products were detected by high performance liquid chromatography、mass spectrometry and ¹H nuclear magnetic resonance. It was confirmed that the actual loading of nickel chelated polyacrylate resin on free NahK and GlmU were 10 and 20 mg·g^-1， respectively. The optimal ratio of immobilized enzyme was 5.5 g immobilized NahK and 2.5 g immobilized GlmU. The optimal pH and temperature of immobilized enzyme were 8.0 and 35 ℃， respectively. The total immobilized enzyme could stably react for 5 batches in repeated reaction. Glucose， N-acetylglucosamine and mannose could participate in the one pot method reaction. The relative molecular weights of UDP sugars were 566、607 and 566， respectively. In this system， glucuronic acid， galactose and fructose could not synthesize the corresponding UDP sugars. Based on immobilized enzyme technology， UDP glucose， UDP N-acetylglucosamine and UDP mannose were synthesized in one pot method.

Key words: UDP suger immobilized enzyme, one pot method, UDP-Glc, UDP-GlcNAc, UDP-Man

中图分类号:

吕海超, 贾哲康, 张文, 蒋丽雯, 晁玉文, 窦文芳. 尿苷二磷酸糖固定化酶合成法研究[J]. 生物技术进展, 2022, 12(2): 270-280.

Haichao LYU, Zhekang JIA, Wen ZHANG, Liwen JIANG, Yuwen CHAO, Wenfang DOU. Study on Uridine Diphosphate Sugar Synthesis by Immobilized Enzyme[J]. Current Biotechnology, 2022, 12(2): 270-280.

图/表 10

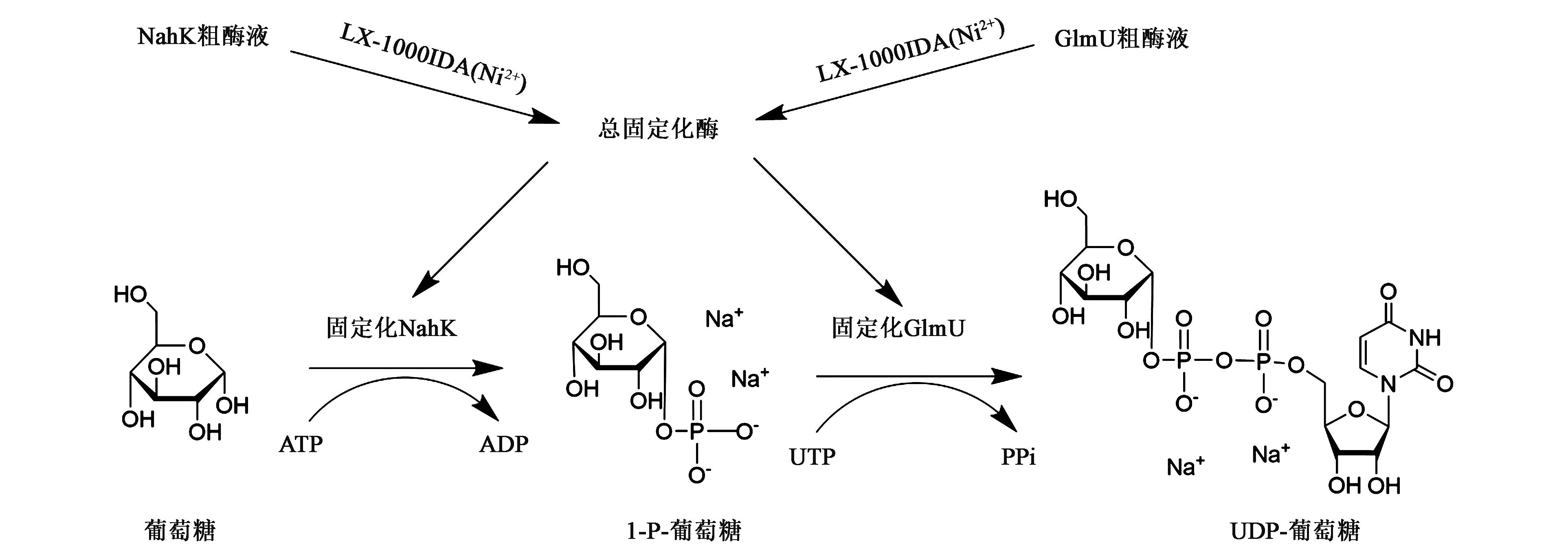

图1 合成UDP?糖的反应路线（以葡萄糖为例）

Fig. 1 Reaction route of UDP sugar synthesis (taking glucose as an example)

表1 菌体量、酶量和镍螯合聚丙烯酸酯树脂量的实际对应值

Table 1 Actual corresponding values of bacteria amount, enzyme amount and nickel chelated polyacrylate resin amount

酶	菌体量/g	酶量/mg	镍螯合聚丙烯酸酯树脂量/g
NahK	1	20	2.0
GlmU	1	30	1.5

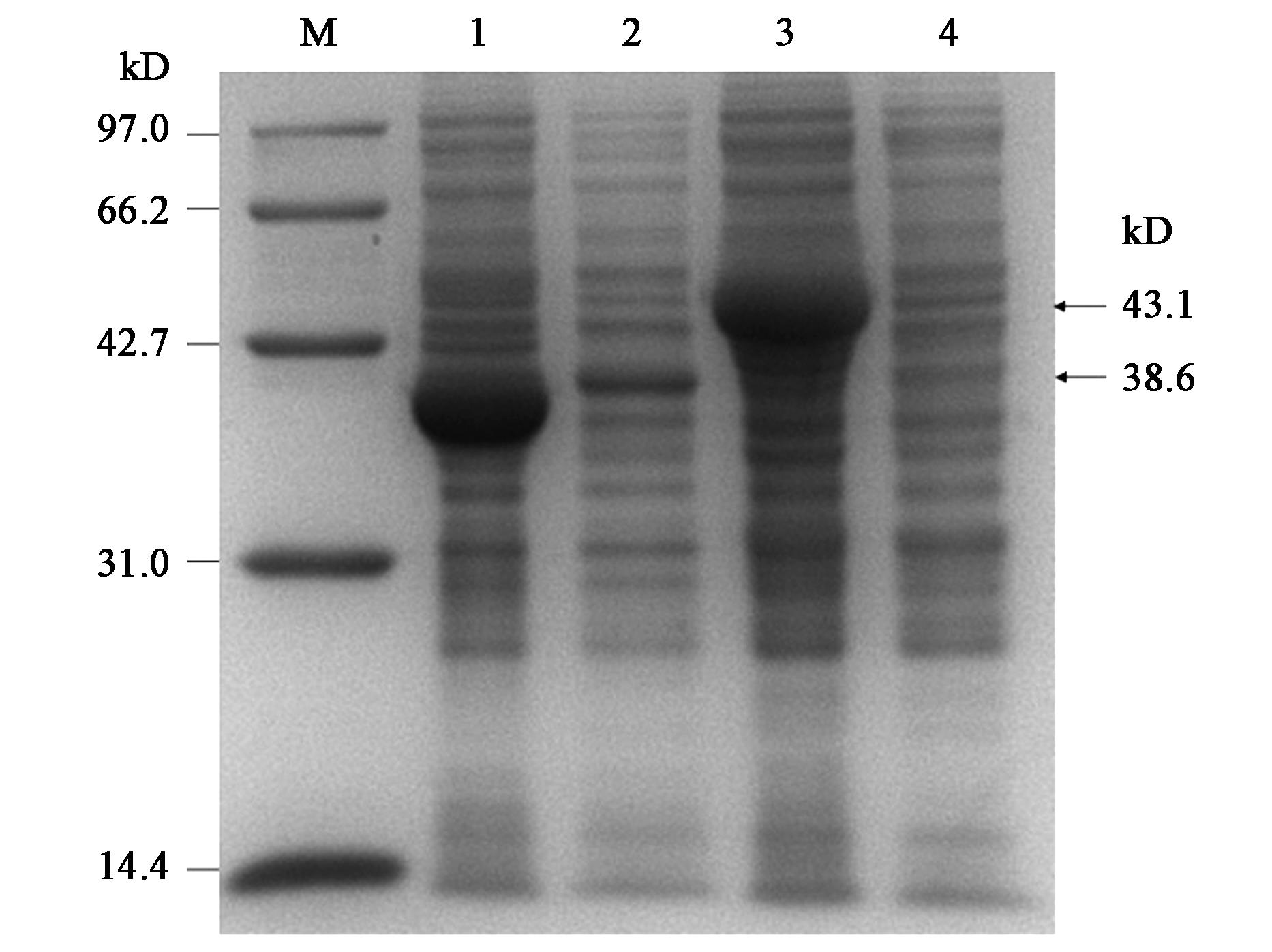

图2 SDS?PAGE分析NahK、GlmU固定化情况注：M—Marker；1—固定前NahK；2—固定后NahK；3—固定前GlmU；4—固定后GlmU

Fig. 2 The immobilization of NahK and GlmU by SDS?PAGE analysis

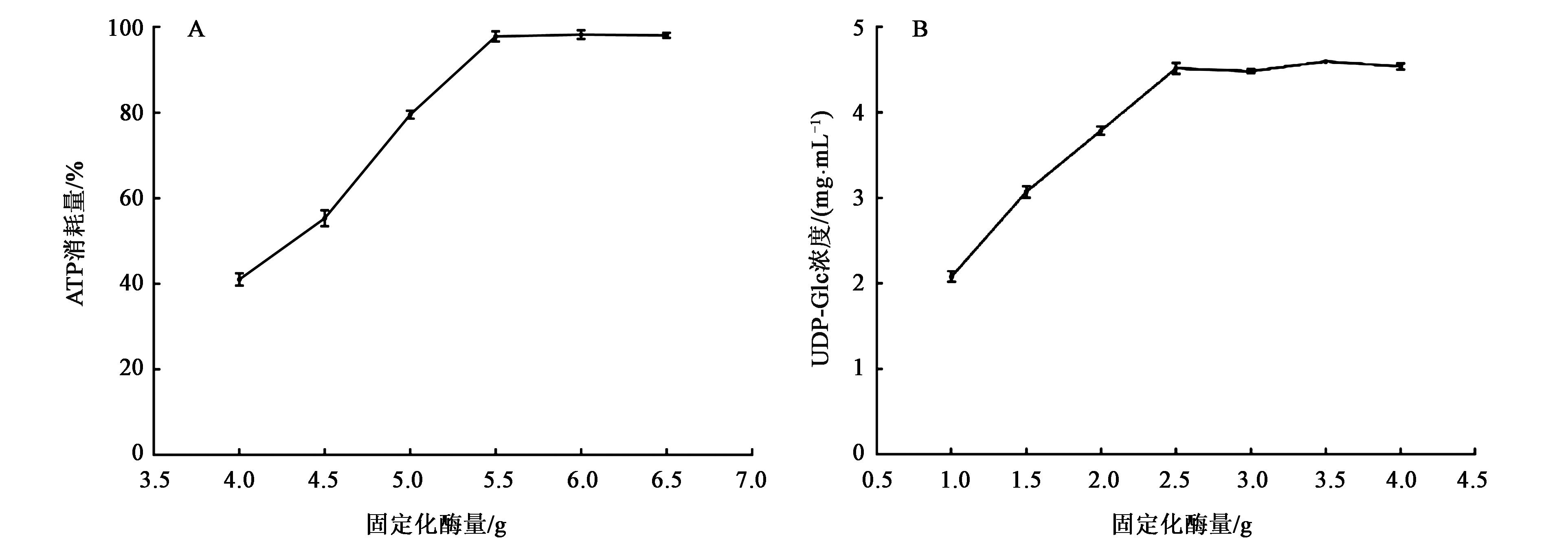

图3 总固定化酶的条件优化A：固定化NahK；B：固定化GlmU

Fig. 3 Optimization of total immobilized enzyme conditions

图4 总固定化酶酶学性质A：最适pH；B：最适温度

Fig. 4 Enzymatic properties of total immobilized enzyme

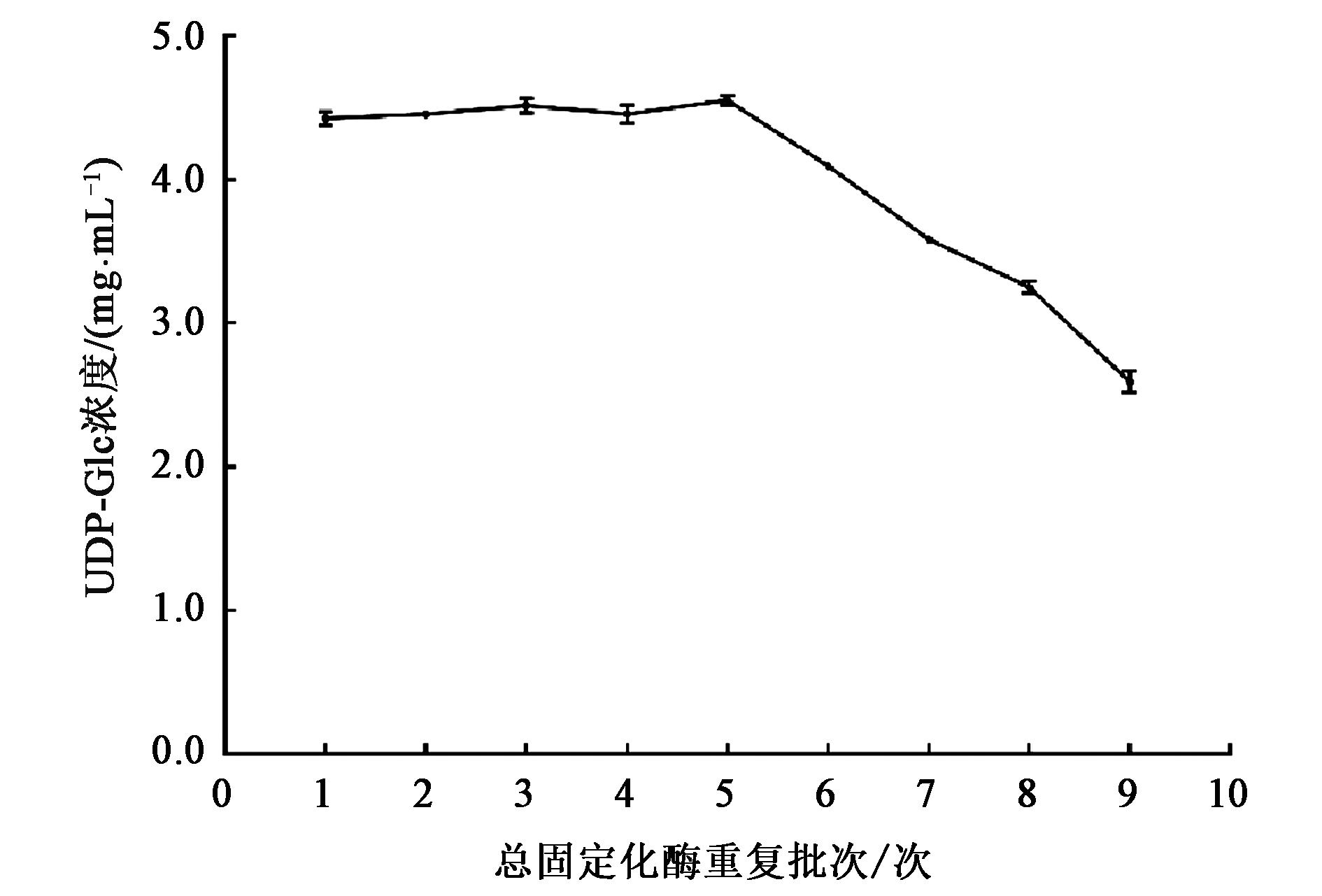

图5 总固定化酶重复稳定性分析

Fig. 5 Stability analysis of total immobilized enzyme

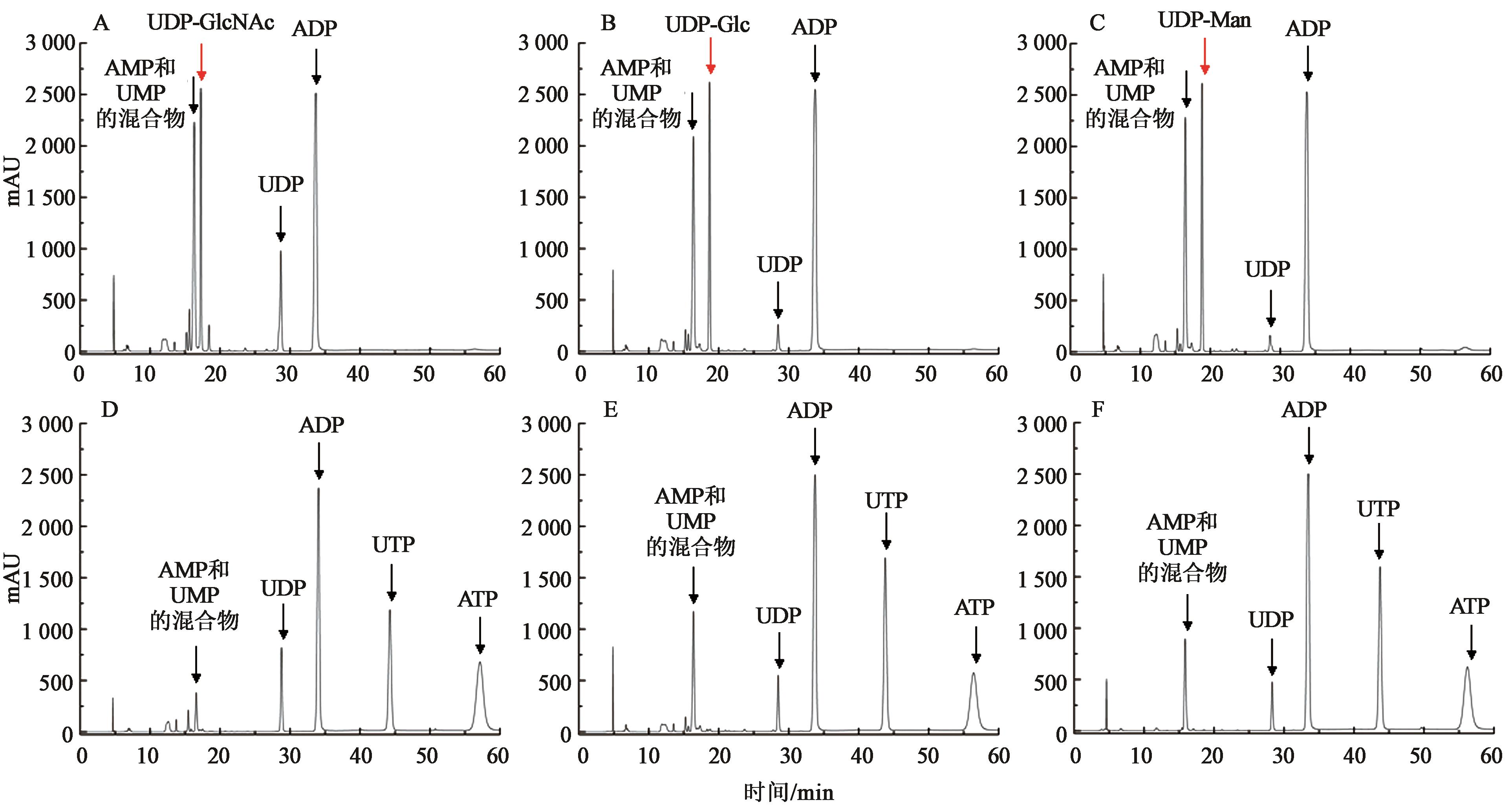

图6 不同单糖作为底物的合成情况A:底物为N?乙酰氨基葡萄糖；B:底物为葡萄糖；C:底物为甘露糖；D：底物为葡萄糖醛酸；E:底物为半乳糖；F：底物为果糖

Fig. 6 Synthesis of different monosaccharides as substrates

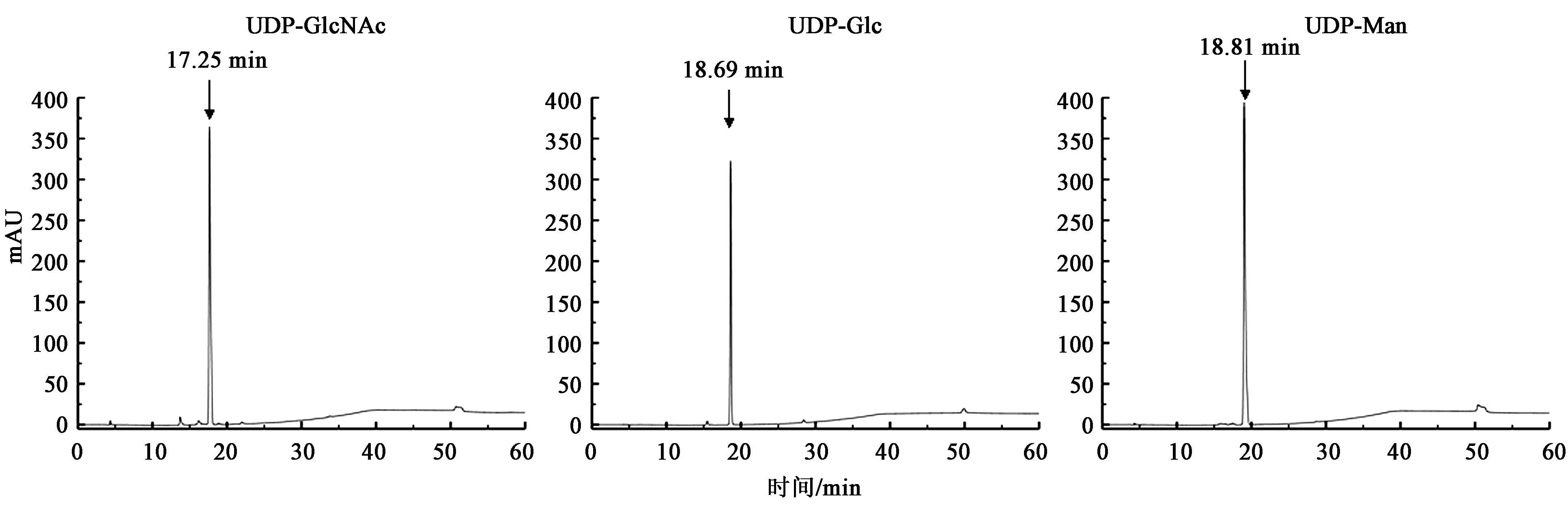

图7 UDP?糖的分离纯化

Fig. 7 Separation and purification of UDP sugar

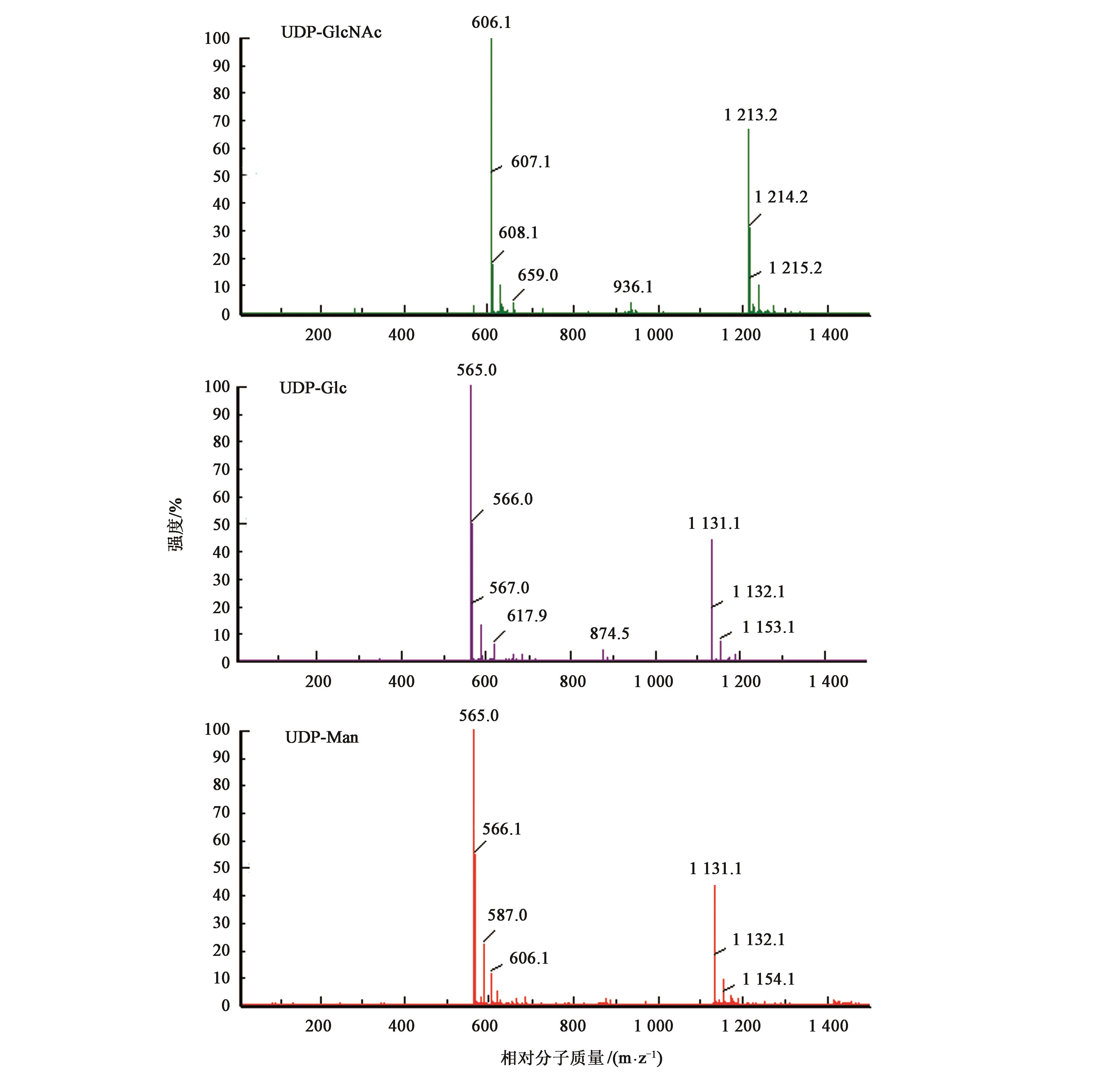

图8 UDP?糖的LC?MS分析

Fig. 8 LC?MS analysis of UDP sugar

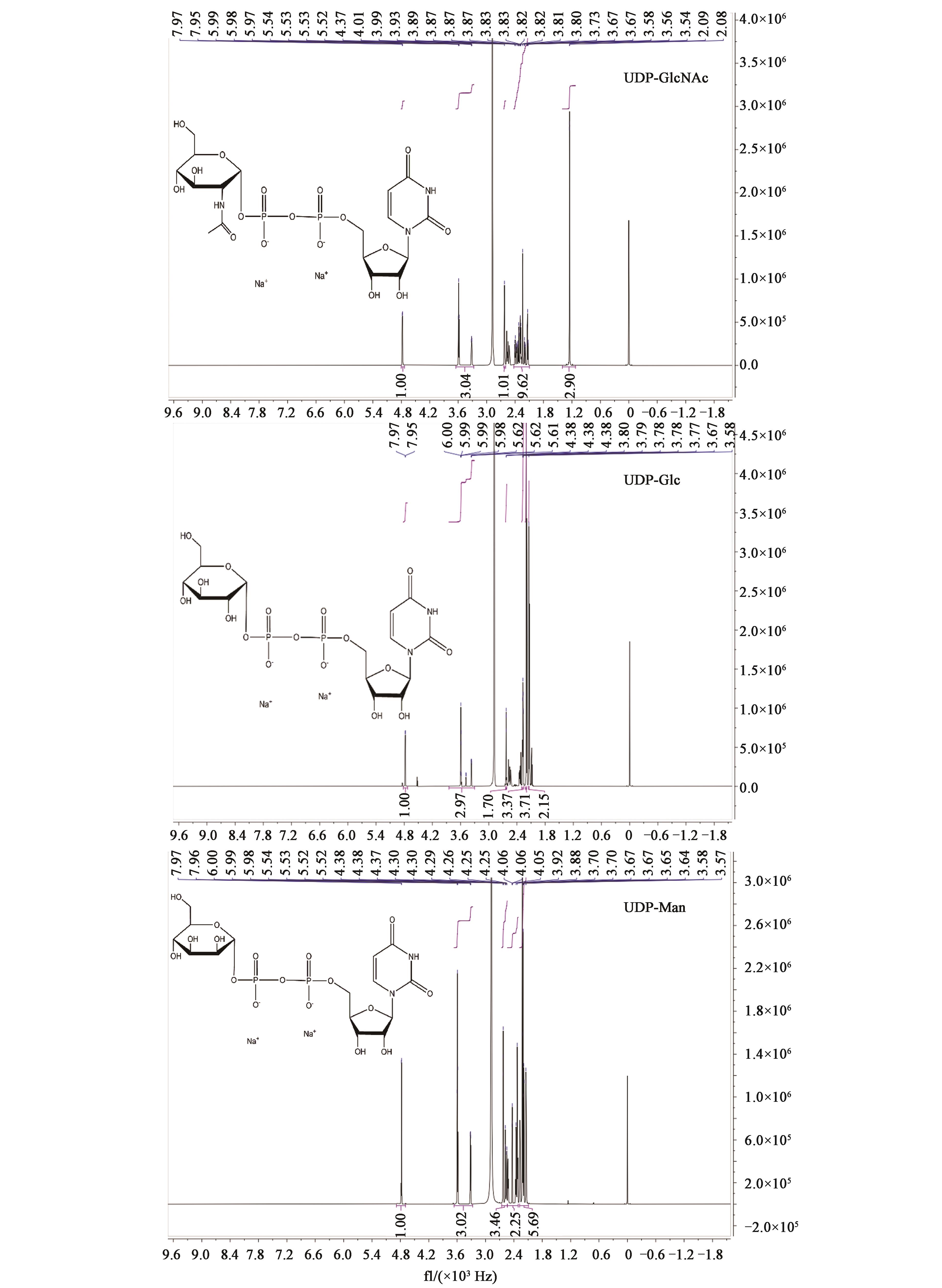

图9 UDP?糖的1H?NMR分析

Fig. 9 1H?NMR analysis of UDP sugar

参考文献 23

1	叶静斯,窦文芳,王程. 葡萄柚中糖基转移酶对槲皮素及其类似物催化机制探讨[J]. 生物技术通报,2019,35(7):121-128.
2	DAI L H, LI J, YAO P Y, et al.. Exploiting the aglycon promiscuity of glycosyltransferase Bs-YjiC from Bacillus subtilis and its application in synthesis of glycosides[J]. J. Biotechnol.,2017,248:69-76.
3	秦晶晶,孙春玉,张美萍,等. 植物UDP-糖基转移酶分类、功能以及进化[J]. 基因组学与应用生物学,2018,37(1):440-450.
4	王帅帅. 透明质酸的酶法合成及其应用研究[D]. 济南:山东大学, 2015.
5	XU Y M, MASUKO S, TAKIEDDIN M, et al.. Chemoenzymatic synthesis of homogeneous ultralow molecular weight heparins[J]. Science,2011,334(6055):498-501.
6	CYIP LILY, BALIS X U. Effects of uridine diphosphoglucose (UDPG) infusion on 5-phosphoribosyl pyrophosphate (PRPP) levels of mouse tissues[J]. Biochem. Pharmacol.,1987,36(5):633-637.
7	张晶晶. 肝素修饰酶在昆虫细胞中的表达及其在寡糖合成中的应用[D]. 济南:山东大学, 2020.
8	刘潇斐,张良,冯旭东,等. 偶联尿苷二磷酸循环体系的天然产物体外糖基化修饰[J]. 化工进展,2020,39(1): 329-340.
9	何丽丽,窦文芳,吕海超,等. 基于双酶偶联法合成尿苷二磷酸葡萄糖醛酸的研究[J]. 生物技术进展,2021,11(3):393-402.
10	NISHIMOTO M, KITAOKA M. Identification of N-acetylhexosamine 1-kinase in the complete lacto-N-biose I/galacto-N-biose metabolic pathway in Bifidobacterium longum [J]. Appl. Environ. Microbiol.,2007,73(20):6444-6449.
11	MENGIN L D, VAN H J. Copurification of glucosamine-1-phosphate acetyltransferase and N-acetylglucosamine-1-phosphate uridyltransferase activities of Escherichia coli: characterization of the glmU gene product as a bifunctional enzyme catalyzing two subsequent steps in the pathway for UDP-N-acetylglucosamine synthesis[J]. J. Bacteriol.,1994,176(18):5788-5795.
12	ZHAI Y F, LIANG M, FANG J Q, et al.. NahK/GlmU fusion enzyme: characterization and one-step enzymatic synthesis of UDP-N-acetylglucosamine[J]. Biotechnol. Lett.,2012,34(7):1321-1326.
13	CAI L, GUAN W Y, CHEN W L, et al.. Chemoenzymatic synthesis of uridine 5'-diphospho-2-acetonyl-2-deoxy-alpha-D-glucose as C-2-carbon isostere of UDP-GlcNAc[J]. J. Organ. Chem.,2010,75(10):3492-3494.
14	ZACHARY A M, MARK N. Synthesis of C6-substituted UDP-GlcNAc derivatives[J/OL]. Carbohydr. Res.,2020,495:108071.[2022-02-20]..
15	姚稼灏,薛雅鞠,赵永亮,等. 多孔纳米材料固定化酶研究进展[J]. 微生物学通报,2020,47(7):2177-2192.
16	金鹏. 透明质酸寡聚糖生物合成与DNA编辑组装工具构建[D]. 无锡:江南大学,2016.
17	李娜. 改造枯草芽孢杆菌代谢通路合成透明质酸研究[D]. 长春:吉林大学, 2020.
18	李晓燕. 生物酶法合成肝素的多种关键酶制备和酶反应工程研究[D]. 杭州:浙江大学,2016.
19	周世婷. 酶制剂的浸水作用效果及影响因素研究[D]. 天津:天津科技大学,2017.
20	陈海欣,张赛男,赵力民,等. 固定化酶:从策略到材料设计[J]. 生物加工过程,2020,18(1):88-95.
21	MARZUKI N I, ABU B F, SALLEH A B, et al.. Development of electrochemical biosensor for formaldehyde determination based on immobilized enzyme[J]. Int. J. Electrochem. Sci.,2012,7(7):6070-6083.
22	余冲,孙秀丽,王东旭,等. 酶固定化载体及固定化方法最新研究进展[J]. 广东化工,2021,48(2):60-62, 78.
23	LIU Y, CAI Z X, JIN Y G, et al.. Volcanic rock-inspired fabrication of porous chitosan macroparticles via gas porogen for enhancing the activity of immobilized enzymes[J]. ACS Sustain Chem. Engin.,2020,8(41):15560-15572.
